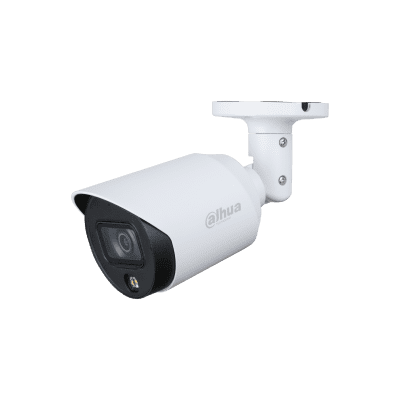

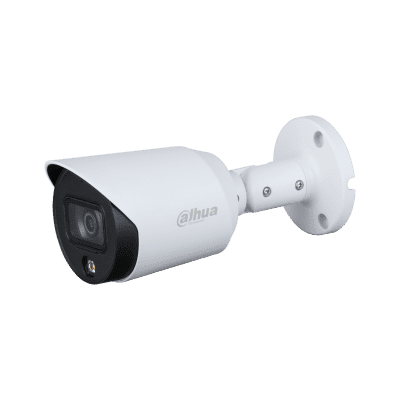

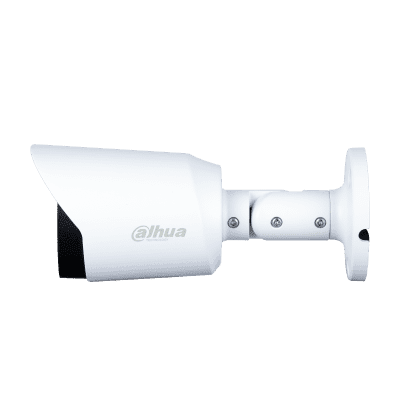

Dahua DH-HAC-HFW1809T-A-LED 4K Full-Color HDCVI Bullet Camera

Technical Specification

This product model is not available in this region

Dahua DH-HAC-HFW1809T-A-LED 4K Full-Color HDCVI Bullet Camera

Features:

Make: Dahua Technology
Model code: DH-HAC-HFW1809T-A-LED
Series: Lite series
Color Type: Color
Resolution TVL: 8 MP

Additional info:

Max. 15 fps@4K. 120 dB true WDR, 3D NR. 24/7 color imaging. 20 m illumination distance. Super Adapt. Built-in MIC(-A) . 3.6 mm fixed lens (2.8 mm optional). CVI/CVBS/AHD/TVI switchable.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>Surveillance cameras
Model code	DH-HAC-HFW1809T-A-LED
Series	Lite series
Color Type	Color
Resolution TVL	8 MP
Sensitivity lux	0.001
Electrical Specifications	Voltage: 12 V DC Power Consumption: Max. 5 W
Focal Length mm	2.8 mm; 3.6 mm
Mount Type	Wall, Pole, Ceiling
Wide Dynamic Range	Yes
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	PAL: 1/3 s–1/100000 s, NTSC: 1/4 s–1/100000 s
S/ N (Signal/ Noise) Ratio dB	>65
Signal Mode	PAL, NTSC
Zoom	Yes
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Physical Specifications	Dimension mm: 174.5 x 70.6 x 72.3 Weight g: 360
Environmental Specifications	Operating Temperature ^oC: -40 ~ +60 C (-40 ~ +140 F) Protection: IP67 Operating Humidity %: <95
Additional info	Max. 15 fps@4K. 120 dB true WDR, 3D NR. 24/7 color imaging. 20 m illumination distance. Super Adapt. Built-in MIC(-A) . 3.6 mm fixed lens (2.8 mm optional). CVI/CVBS/AHD/TVI switchable.
