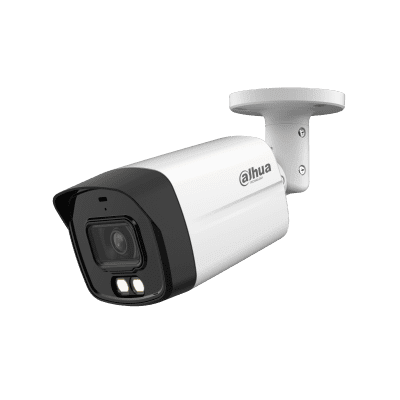

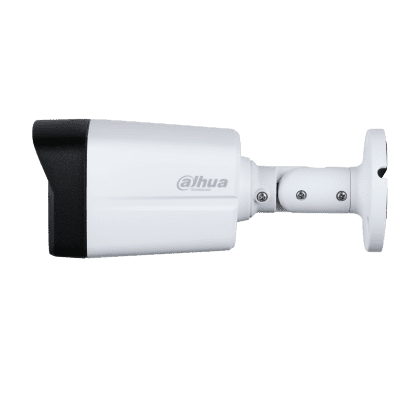

Dahua DH-HAC-HFW1500TLM-IL-A 5MP Smart Dual Light HDCVI Fixed-focal Bullet Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: DH-HAC-HFW1500TLM-IL-A
- Series: Lite series
- Color Type: Color / Monochrome
- Resolution TVL: 5 MP
Additional info:
Max 25 fps@5MP (16:9 video output). Smart Dual Light. 40 m illumination distance. Super Adapt. Built-in MIC. 3.6 mm fixed lens (2.8 mm optional). CVI/CVBS/AHD/TVI switchable. IP67, 12 VDC.
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>Surveillance cameras |
| Model code | DH-HAC-HFW1500TLM-IL-A |
| Series | Lite series |
| Color Type | Color / Monochrome |
| Resolution TVL | 5 MP |
| Sensitivity lux | 0.05 lux@F1.6 (Color, 30 IRE), 0.005 lux@F1.6 (B/W, 30 IRE), 0 lux (Illuminator on) |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 4.5 W |
| Motion Activated | Yes |
| Focal Length mm | 2.8 mm; 3.6 mm |
| Wide Dynamic Range | Yes |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | PAL: 1/25 s–1/100000 s, NTSC: 1/30 s–1/100000 s |
| S/ N (Signal/ Noise) Ratio dB | >65 |
| Video Output | CVI/TVI/AHD/CVBS by one BNC port |
| Physical Specifications |
Dimension mm: 198.4 x 80.2 x 76.2 Weight g: 300 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F) Protection: IP67 Operating Humidity %: < 95 |
| Additional info |
|
| Download PDF version Download PDF version | |
