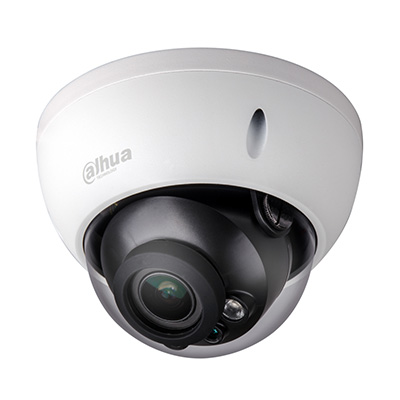

Dahua Technology DH-CA-DBW181R-VF 720TVL HDIS Day/night Vandal-proof IR Dome Camera

Please note: this is a discontinued product.

See relevant products

Features:

Additional info:

Day/Night(ICR), AWB, AGC, BLC Max. IR LEDs length 30m, Smart IR

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>Dome cameras
Model code	DH-CA-DBW181R-VF
Resolution TVL	720
Sensitivity lux	0.02
Digital (DSP)	Yes
Electrical Specifications	Voltage: 12 V DC Power Consumption: 3.1 W
Focal length	2.7 ~ 12 mm
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/50~1/100,000s
S/ N (Signal/ Noise) Ratio dB	65
Built-in IR LED	Yes
Video Output	1Vp-p Composite Output (75?/BNC)
Physical Specifications	Dimensions mm: 122 x 89 Weight g: 450
Environmental Specifications	Operating Temp ^oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: 0 ~ 95 Protection: IP66, IK10
Additional info	Day/Night(ICR), AWB, AGC, BLC Max. IR LEDs length 30m, Smart IR
Download PDF version Download PDF version
