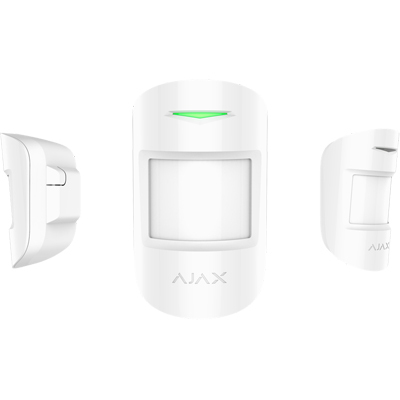

Ajax MotionProtect Plus Wireless Motion Detector With Microwave Sensor

Technical Specification

Features:

Make: Ajax
Model code: MotionProtect Plus
PIR Detectors: Yes
Dual/ Quad Technology: Dual Technology Detectors
Coverage/ Range m: 12

Additional info:

Wireless motion detector with microwave sensor that notifies the owner of first signs of home or office intrusion Designed for rooms with air conditioners, fireplaces and where there is a likelihood of light flickering, glare and reflections Detects human presence by temperature difference with background thermal radiation The microwave sensor prevents false alarms caused by complex interference Detects movement at a distance of up to 12 m Alarm is transmitted within 0.15 s Pet immunity Temperature Compensation Two-way encrypted communication with the control panel at the range of up to 1,700 m Multilevel anti-sabotage protection Ready to operate straight out the box The battery is already installed inside, therefore there is no need to disassemble the detector It can be mounted in just a few minutes using the SmartBracket mount

Contact manufacturer Contact manufacturer

Make	Ajax
Manufacturer	Ajax Systems
Category	Intruder Alarms>Intruder detectors
Model code	MotionProtect Plus
PIR Detectors	Yes
Dual/ Quad Technology	Dual Technology Detectors
Coverage/ Range m	12
Angle of Detection ^o	Horizontal - 88.5 , Vertical - 80
Microwave	Yes
Pet Tolerance	Yes
Dual Element Sensor	Yes
Temperature Compensation	Yes
Indoor/Outdoor	Indoor
Electrical Specifications	Power Supply: 3V
Physical Specifications	Dimensions mm: 110 x 65 x 50
Environmental Specifications	Operating Temp ^oC: -10 ~ 40 C (14 ~ 104 F)
Additional info	Wireless motion detector with microwave sensor that notifies the owner of first signs of home or office intrusion Designed for rooms with air conditioners, fireplaces and where there is a likelihood of light flickering, glare and reflections Detects human presence by temperature difference with background thermal radiation The microwave sensor prevents false alarms caused by complex interference Detects movement at a distance of up to 12 m Alarm is transmitted within 0.15 s Pet immunity Temperature Compensation Two-way encrypted communication with the control panel at the range of up to 1,700 m Multilevel anti-sabotage protection Ready to operate straight out the box The battery is already installed inside, therefore there is no need to disassemble the detector It can be mounted in just a few minutes using the SmartBracket mount
