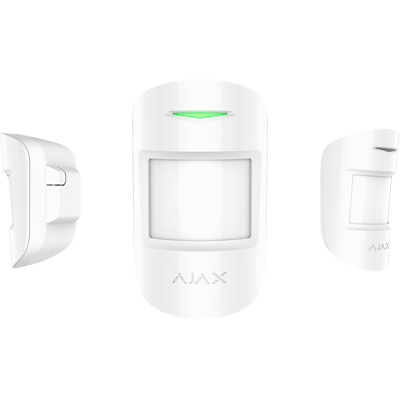

Ajax MotionProtect Wireless Motion Detector

Technical Specification

Features:
  • Make: Ajax
  • Model code: MotionProtect
  • PIR Detectors: Yes
  • Coverage/ Range m: 12
  • Angle of Detection o: Horizontal — 88.5° , Vertical — 80°
Read more
Additional info:

Wireless motion detector that notifies the owner of the first signs of home or office intrusion. The detector is fastened to the wall in front of the doors and other places likely of intruder entry. Principle of operation The device detects human presence by IR level using a passive IR sensor. The data received is digitally processed in order to prevent false alarms. Features The device automatically increases or decreases the sensor sensitivity in order to accurately detect motion during hot and cold weather. Installation and set up Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.

Read more
Make Ajax
Manufacturer Ajax Systems
Model code MotionProtect
PIR Detectors Yes
Coverage/ Range m 12
Angle of Detection o Horizontal — 88.5° , Vertical — 80°
Pet Tolerance Yes
Indoor/Outdoor Indoor
Electrical Specifications Power Supply: 3V
Physical Specifications Dimensions mm: 110 х 65 x 50
Environmental Specifications Operating Temp oC: 5 ~ 40 C (41 ~ 104 F)
Additional info

Wireless motion detector that notifies the owner of the first signs of home or office intrusion. The detector is fastened to the wall in front of the doors and other places likely of intruder entry.

Principle of operation

The device detects human presence by IR level using a passive IR sensor. The data received is digitally processed in order to prevent false alarms.

Features

The device automatically increases or decreases the sensor sensitivity in order to accurately detect motion during hot and cold weather.

Installation and set up

Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.

Download PDF version Download PDF version
