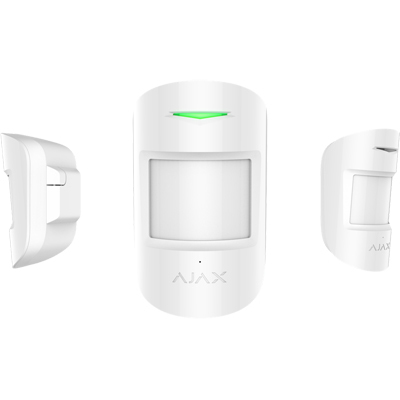

Ajax CombiProtect Wireless Combined Motion And Glass Break Detector

Technical Specification

Features:
  • Make: Ajax
  • Model code: CombiProtect
  • PIR Detectors: Yes
  • Glassbreak Detectors: Yes
  • Coverage/ Range m: 12 m (motion), 9 m (breakage)
Read more
Additional info:

Wireless combined motion and glass break detector. The device helps to secure the room from intruders entering through doors and windows, and monitors the current state of the glass. Principle of operation The device combines the functions of two detectors — motion detector and glass break detector. It detects motion in the room at a distance of up to 12 m and registers broken glass at a distance of up to 9 m from the window. Features The device detects motion even in hot climates by means of temperature compensation. It filters false alarms caused by thunder, dogs barking or the sound of passing trucks. Installation and set up Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes

Read more
Make Ajax
Manufacturer Ajax Systems
Model code CombiProtect
PIR Detectors Yes
Glassbreak Detectors Yes
Coverage/ Range m 12 m (motion), 9 m (breakage)
Angle of Detection o Horizontal — 88.5° , Vertical — 80°
Pet Tolerance Yes
Indoor/Outdoor Indoor
Electrical Specifications Power Supply: 3V
Physical Specifications Dimensions mm: 110 x 65 x 50
Environmental Specifications Operating Temp oC: -10 ~ +40 C (14 ~ 104 F)
Additional info

Wireless combined motion and glass break detector. The device helps to secure the room from intruders entering through doors and windows, and monitors the current state of the glass.

Principle of operation

The device combines the functions of two detectors — motion detector and glass break detector. It detects motion in the room at a distance of up to 12 m and registers broken glass at a distance of up to 9 m from the window.

Features

The device detects motion even in hot climates by means of temperature compensation. It filters false alarms caused by thunder, dogs barking or the sound of passing trucks.

Installation and set up

Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes

Download PDF version Download PDF version
