Visionhitech VD100C 380 TVL CCTV camera
Technical Specification
Features:
- Make: Visionhitech
- Model code: VD100C
- Chip Inch Size: 1/3
- Resolution TVL: 380 TVL
- Sensitivity lux: 0.3
| Make | Visionhitech |
|---|---|
| Manufacturer | Visionhitech Co., Ltd |
| Category | Video Surveillance>Dome cameras |
| Model code | VD100C |
| Chip Inch Size | 1/3 |
| Resolution TVL | 380 TVL |
| Sensitivity lux | 0.3 |
| Digital (DSP) | Yes |
| Mount Type | Wall, Ceiling |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 80 mA |
| Focal length | 3.6mm |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/60 ~ 1/100,000 |
| S/ N (Signal/ Noise) Ratio dB | >50 dB |
| Synchronisation | Internal |
| Signal Mode | PAL/NTSC |
| Video Output | 1.0Vp-p Composite. 75 Ohms |
| Physical Specifications | Weight g: 330 |
| Environmental Specifications |
Operating Temp oC: -10 ~ +50 Operating Humidity %: < 90 |
| Download PDF version Download PDF version | |

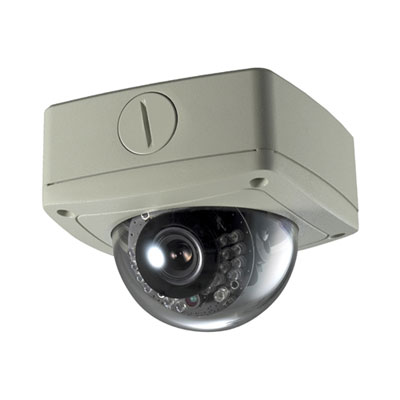

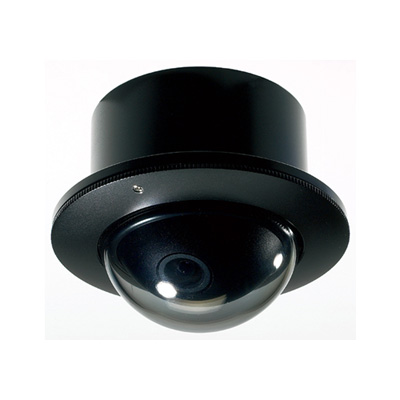

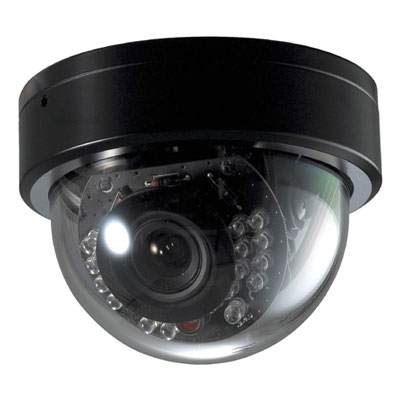

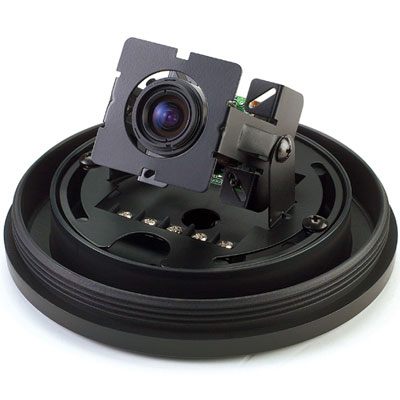

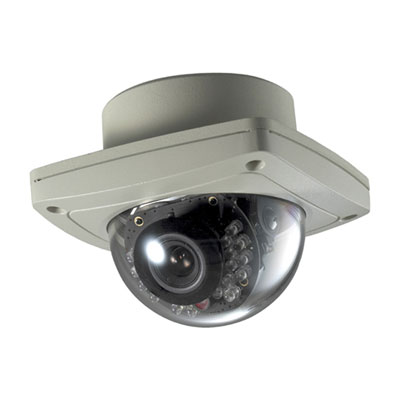

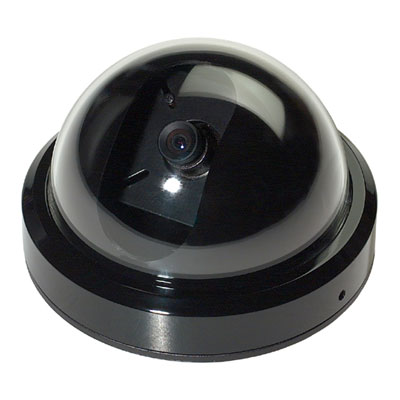

More Visionhitech Dome cameras
