IDS Imaging Development Systems GmbH Extends Ensenso N 3D Camera Series With The Release Of Compact N40/N45 3D Cameras

IDS Imaging Development Systems GmbH has announced extended its Ensenso N 3D camera series with the introduction of Ensenso N40/N45 3D cameras that are compact, lightweight and collaborative.

Ensenso N 3D camera series

The Ensenso N-Series is a compact and robust 3D camera system designed specifically for 3D applications in robotics and automated series production. Thanks to IP65/67 protection, it is also well-suited for use in harsher environments.

The Ensenso N-Series camera family is now being expanded with the addition of the new N40 and N45 models. They feature a novel design, both inside and outside. Lightweight and with rounded edges, they open up new application possibilities, for example in collaborative robotics.

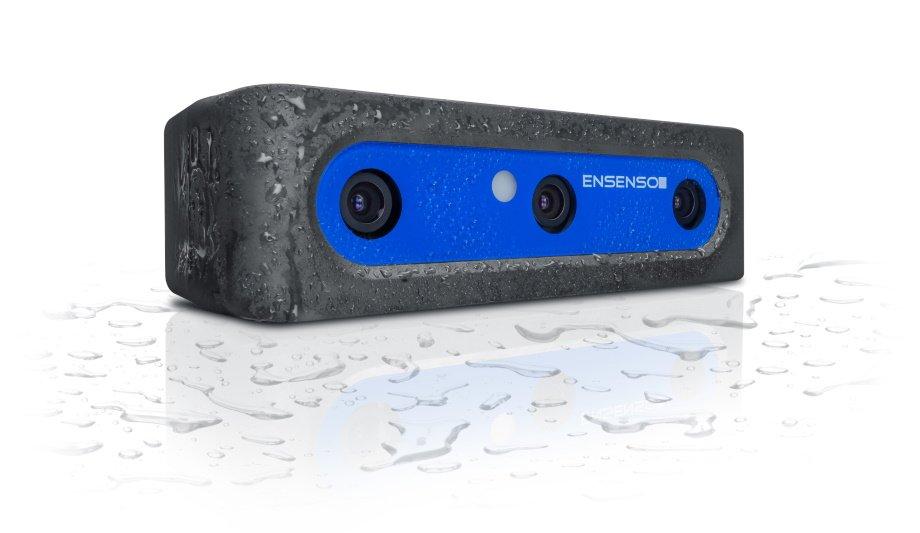

Ensenso N40/N45 3D cameras

The housing of the new Ensenso N40/N45 3D cameras is made of fiber-reinforced plastic

The housing of the new Ensenso N40/N45 3D cameras is made of fiber-reinforced plastic, resulting in the lightest stereo vision cameras with Gigabit Ethernet in the IDS product range. When mounted on a robot arm, for example, this means less stress on the robot mechanics.

The Ensenso N40/N45 3D cameras also minimize the risk of injury thanks to their rounded edges. As a result, they also excel in collaborative use with human colleagues.

Enhanced infrared projector

Furthermore, the housing meets the requirements of protection class IP65/67 and is effectively protected against dirt, dust and water spray. Electronics have also been revised for the new 3D cameras.

The improved infrared projector enables higher light output and has an optimized heat management. This results, among other things, in better data quality or higher clock rates. The projector is optionally available with blue illumination in the visible range (465 nm) or with infrared illumination (850 nm).

Equipped with monochrome CMOS sensors

The new models each include two monochrome CMOS sensors (global shutter, 1280 x 1024 pixels) and are equipped with screwable GPIO connectors for trigger and flash. Power-over-Ethernet allows data transfer and power supply to be realized even over long cable distances. The Ensenso selector on the IDS website helps customers to choose the right camera model.

A new stereo matching process, which is available as standard for all models, when using the Ensenso SDK 3.0, also ensures particularly detailed point clouds. ‘PatchMatch’ works extremely effectively with a large distance range at different object distances and without significant effects on the execution speed of the algorithm. This benefits, for example, applications in which large volumes are to be captured in the shortest possible time.
