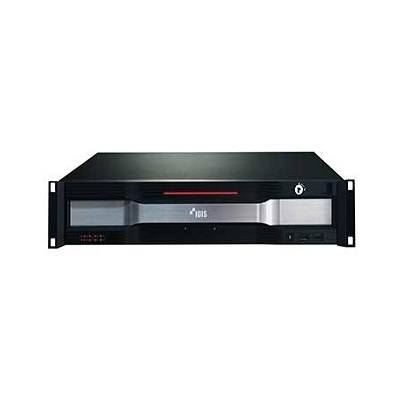

IDIS IR-300 IDIS Security Workstation

Technical Specification

Features:

Make: IDIS
Model code: IR-300
Series: IR Series
Recording Mode: Real Time / Timelapse / Event
Video inputs: 64

Additional info:

Pre-installed with IDIS Solution Suite VMS Tested and validated with IDIS Solution Suite up to 64 Full HD H.264 / 265 IP cameras Storage configuration: 8 SATA + 2 eSATA Ports Supports up to 64 Full HD cameras in real-time for enterprise-level surveillance systems 400Mbps maximum recording bandwidth per server Complete compatibility with IDIS components : IP cameras, analog DVR, DirectCX TVR, DirectIP NVR, and encoders 2U rack mount chassis

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	IDIS
Manufacturer	IDIS
Category	Video Surveillance>Network Video Recorders (NVRs)
Model code	IR-300
Series	IR Series
Recording Mode	Real Time / Timelapse / Event
Video inputs	64
Inbuilt multiplexer	Yes
Recording system	HDD
Secondary storage	USB
Operating system	Microsoft® Windows Embedded Standard 8
Electrical Specifications	Voltage: 100 ~ 240 V AC Power consumption (W): 100
Physical Specifications	Weight (kg): 10.5 Dimensions (mm): 483 x 88 x 523
Environmental Specifications	Operating temperature (°C): 0 ~ 40 C (32 ~ 104 F) Operating humidity (%): 0 ~ 90
Additional info	Pre-installed with IDIS Solution Suite VMS Tested and validated with IDIS Solution Suite up to 64 Full HD H.264 / 265 IP cameras Storage configuration: 8 SATA + 2 eSATA Ports Supports up to 64 Full HD cameras in real-time for enterprise-level surveillance systems 400Mbps maximum recording bandwidth per server Complete compatibility with IDIS components : IP cameras, analog DVR, DirectCX TVR, DirectIP NVR, and encoders 2U rack mount chassis
