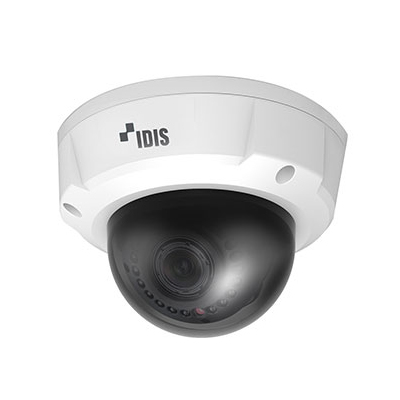

IDIS DC-D2233WHX Full HD WDR IR IP Dome Camera

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

IDIS DC-D2233WHX Full HD WDR IR IP Dome Camera

Features:

Make: IDIS
Model code: DC-D2233WHX
Chip Inch Size: 1/2
Color Type: Color / Monochrome
Resolution TVL: 1920 x 1080

Additional info:

IDIS DC-D2233WHX is a vandal resistant IP dome camera with full HD (1080P) resolution. It features IR illumination up to 20m, true WDR, and Digital Image Stabilizer. It also features built-in heater, two-way audio, alarm in/out, 3-axis mechanical design for installation as well as PoE. It supports ONVIF and can be easily installed with DirectIP NVR.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	IDIS
Manufacturer	IDIS
Category	Video Surveillance>IP Dome cameras
Model code	DC-D2233WHX
Chip Inch Size	1/2
Color Type	Color / Monochrome
Resolution TVL	1920 x 1080
HD	Yes
Dome Type	PTZ
Indoor/Outdoor	Outdoor
Digital (DSP)	Yes
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: 19.2 W
Focal length	3.3 ~ 10 mm
Compression	H.264(MP), M-JPEG
Back Light Compensation	Yes
White Balance	Yes
Electronic Shutter range	1/30 ~ 1/10000
S/ N (Signal/ Noise) Ratio dB	> 45
Built-in IR LED	Yes
Video Output	BNC
Network Properties	Interface: RJ45(10/100/1000BASE-T) Network Protocols: RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP Image Frame Rate: 60 fps Inclusive DVR/ Web Server: micro SD/SDHC
Physical Specifications	Dimensions mm: 155 x 112 Weight g: 900
Environmental Specifications	Operating Temp ^oC: -40 ~ +50 C (-40 ~ +122 F) Operating Humidity %: 0 ~ 90 Protection: IP66
Additional info	IDIS DC-D2233WHX is a vandal resistant IP dome camera with full HD (1080P) resolution. It features IR illumination up to 20m, true WDR, and Digital Image Stabilizer. It also features built-in heater, two-way audio, alarm in/out, 3-axis mechanical design for installation as well as PoE. It supports ONVIF and can be easily installed with DirectIP NVR.
