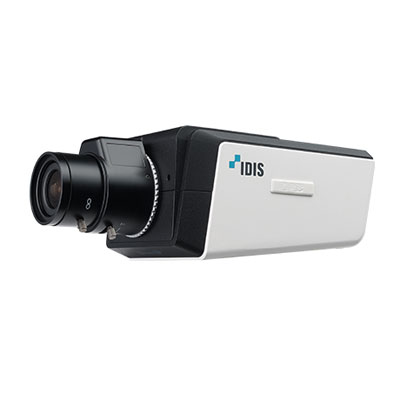

IDIS DC-B1203X Full HD True Day/Night Indoor Fixed Camera

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

IDIS DC-B1203X Full HD True Day/Night Indoor Fixed Camera

Features:

Make: IDIS
Model code: DC-B1203X
Chip Inch Size: 1/3
Color Type: True Day / Night
Resolution: 1920 x 1080

Additional info:

IDIS DC-B1203X is a full HD indoor fixed camera that is easy to install with DirectIP NVR. It has full HD(1080p) resolution and true WDR (Wide Dynamic Range). It has two-way audio and is supports ONVIF.

Contact manufacturer Contact manufacturer

Make	IDIS
Manufacturer	IDIS
Category	Video Surveillance>IP cameras
Model code	DC-B1203X
Chip Inch Size	1/3
Color Type	True Day / Night
Resolution	1920 x 1080
Digital (DSP)	Yes
Specialist Type	Network
Sensitivity Lux	0.5
Auto Iris	Yes
Lens Mount	CS
Electrical Specifications	Voltage: 12 V DC Power Consumption: 5.5 W
Motion Activated	Yes
Wide Dynamic Range	Yes
Network Properties	Image Frame Rate: 30 fps Interface: RJ-45 (10/100BASE-T) Network Protocols: RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP, RTSP/TCP, HTTP, HTTPS, FTP, SNMP, SMTP, FEN, mDNS, uPNP
White Balance	Yes
Electronic Shutter Range	1/30 ~ 1/8000s
S/ N (Signal/ Noise) Ratio dB	45
Signal Mode	NTSC/PAL
Compression Type	H.264/M-JPEG
Physical Specifications	Weight g: 400 Dimensions mm: 76 x 71 x 129
Environmental Specifications	Operating Temperature ^oC: -10 ~ +50 C (14 ~ 122 F) Operating Humidity %: 0 ~ 90
HD	Yes
Additional info	IDIS DC-B1203X is a full HD indoor fixed camera that is easy to install with DirectIP NVR. It has full HD(1080p) resolution and true WDR (Wide Dynamic Range). It has two-way audio and is supports ONVIF.
