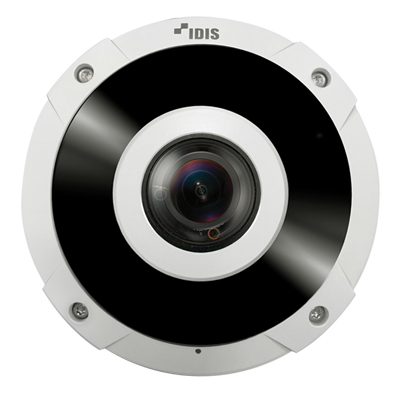

IDIS's 12MP Super Fisheye: High Performance And Cost Saving, Without Any Of The Trade-offs

Product Profile

The IDIS 12MP Super Fisheye camera delivers 360° HD surveillance, with clear identification from center to edge and wall to wall. Built-in IR LEDs ensure nearly 50-ft night visibility, with support for true WDR up to 120dB. It offers camera-side and client-side dewarping (including on smartphones), giving users the widest choice of recording platforms and VMS options.

And the groundbreaking ease and accuracy of IDIS's Smart UX Controls v2.0 allows for effortless dewarping, including agile PTZ in a dewarped state. The Super Fisheye also offers the benefit of IDIS Intelligent Codec with MAT, delivering up to 90% storage and bandwidth savings.

Read more

Technical Specification

Make IDIS
Manufacturer IDIS
Model code DC-Y3C14WRX
Chip Inch Size 1/2
Color Type Color / Monochrome
Resolution 12MP
Digital (DSP) Yes
Specialist Type Infrared
Sensitivity Lux 0 ~ 0.2
Auto Iris Yes
Direct Drive Yes
Electrical Specifications Voltage: 12 V DC, PoE
Power Consumption: 12.6W
Focal Length mm 1.98
Wide Dynamic Range Yes
Network Properties Image Frame Rate: 30 ips
Interface: RJ45 (10/100/1000BASE-T)
Network Protocols: DirectIP™ Mode : DirectIP Protocol ; Compatibility Mode : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP
Back Light Compensation Yes
White Balance Yes
Electronic Shutter Range 1/30 ~ 1/10000
S/ N (Signal/ Noise) Ratio dB 52.7
Compression Type H.265, H.264 (MP), M-JPEG
Physical Specifications Weight g: 920
Dimensions mm: 155 x 58
Environmental Specifications Protection: IP67, IK10
Operating Temperature oC: -10 ~ +60 C (14 ~ 140 F)
Operating Humidity %: 0 ~ 90
Additional info
  • Easy installation with DirectIP NVR
  • 12MP Sensor / 9.4MP (3200 x 2944) resolution
  • Fixed-focal lens (f=1.98mm)
  • micro SD/SDHC/SDXC, Smart Failover
  • Two-way audio
  • Alarm in / out
  • IR LED (Distance : 15m / 49.2ft)
  • Various viewing composition, 6 dewarping view modes
  • Supports ONVIF
