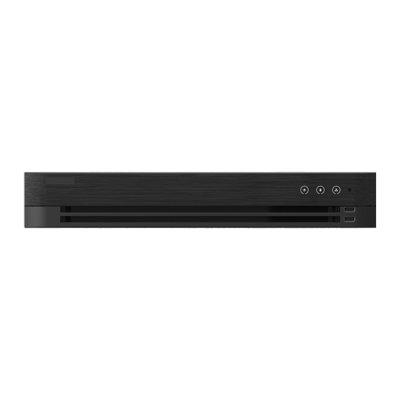

Hikvision DS-7708NI-Q4 8-ch 1.5U 4K NVR

Technical Specification

This product model is not available in this region

Features:

Make: Hikvision
Model code: DS-7708NI-Q4
Video inputs: 8
Inbuilt multiplexer: Yes
Multiplexer type: half-duplex

Additional info:

Up to 8 channel IP cameras can be connected Supports decoding H.265+/H.265/H.264+/H.264 video formats Up to 4K high-definition live view, storage and playback Up to 4-ch @ 1080p decoding capacity Up to 80 Mbps high incoming bandwidth ensures IP cameras can be connected 1 HDMI and 1 VGA interfaces: both interfaces support independent video output 4 HDDs for continuous video recording

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Hikvision
Manufacturer	Hikvision USA Inc.
Category	Video Surveillance>Network Video Recorders (NVRs)
Model code	DS-7708NI-Q4
Video inputs	8
Inbuilt multiplexer	Yes
Multiplexer type	half-duplex
Recording system	HDD
Storage capacity	6TB
Secondary storage	USB
Storage rate	30 fps
Alarm Handling	16 in, 4 out
Electrical Specifications	Voltage: 100 ~ 240 V AC Power consumption (W): ≤ 15 W
Physical Specifications	Weight (kg): ≤ 5 Dimensions (mm): 440 × 393 × 75
Environmental Specifications	Operating temperature (°C): -10 ~ +55 C (14 ~ 131 F) Operating humidity (%): 10 ~ 90
Additional info	Up to 8 channel IP cameras can be connected Supports decoding H.265+/H.265/H.264+/H.264 video formats Up to 4K high-definition live view, storage and playback Up to 4-ch @ 1080p decoding capacity Up to 80 Mbps high incoming bandwidth ensures IP cameras can be connected 1 HDMI and 1 VGA interfaces: both interfaces support independent video output 4 HDDs for continuous video recording
