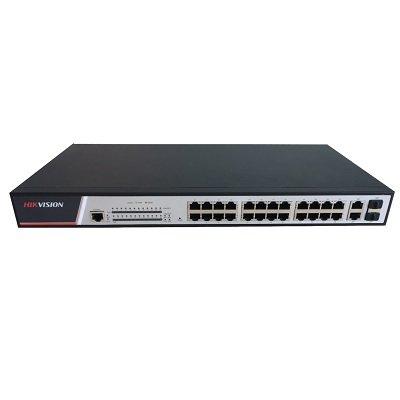

Hikvision DS-3E2326P 24 Port Fast Ethernet Full Managed POE Switch

Technical Specification

This product model is not available in this region

Hikvision DS-3E2326P 24 Port Fast Ethernet Full Managed POE Switch

Features:

Make: Hikvision
Model code: DS-3E2326P
POE: Yes
Video inputs / ports: 24
Dimensions mm: 440 x 232 x 44

Additional info:

Layer 2 network switch designed for video data transmission 24 x 10/100 Mbps PoE ports and 2 x 10/100/1000 Mbps combo uplink ports Various network management standards such as console, Telnet, SSH2.0, Web, SNMP v1/v2/v3, TFTP, RMON IEEE 802.3 af & at high PoE power supply Rich layer 2 features: supports STP, VLAN, mirroring, IGMP Snooping and IGMP v1/v2, L2/L3/L4 ACL, LACP, EAPS, ERPS, Qos Safe and reliable using 4 KV high surge protection.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Hikvision
Manufacturer	Hikvision USA Inc.
Category	Video Surveillance>Switchers & Switches
Model code	DS-3E2326P
POE	Yes
Video inputs / ports	24
Physical Specifications	Dimensions mm: 440 x 232 x 44
Electrical Specifications	Voltage: 100 ~ 240 V AC Power Consumption: 400 W
Environmental Specifications	Operating Temperature ^oC: 0 ~ +50 C (32 ~ 122 F) Operating Humidity %: 10 ~ 90
Additional info	Layer 2 network switch designed for video data transmission 24 x 10/100 Mbps PoE ports and 2 x 10/100/1000 Mbps combo uplink ports Various network management standards such as console, Telnet, SSH2.0, Web, SNMP v1/v2/v3, TFTP, RMON IEEE 802.3 af & at high PoE power supply Rich layer 2 features: supports STP, VLAN, mirroring, IGMP Snooping and IGMP v1/v2, L2/L3/L4 ACL, LACP, EAPS, ERPS, Qos Safe and reliable using 4 KV high surge protection.
Download PDF version Download PDF version
