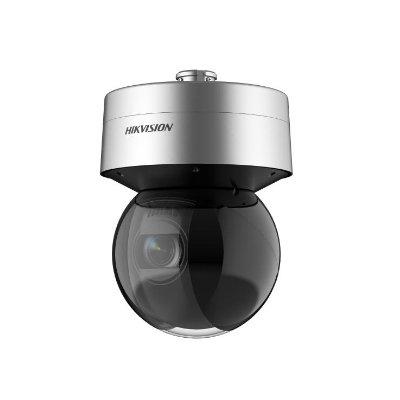

Hikvision DS-2DF8C848I5XS-AELW(T5) 8-inch 4K 48X DarkFighter Laser Network Speed Dome

Technical Specification

This product model is not available in this region

Hikvision DS-2DF8C848I5XS-AELW(T5) 8-inch 4K 48X DarkFighter Laser Network Speed Dome

Features:

Make: Hikvision
Model code: DS-2DF8C848I5XS-AELW(T5)
Series: Hikvision Ultra Series
Chip Inch Size: 1/1.8
Color Type: Color / Monochrome

Additional info:

1/1.8" progressive scan CMOS High quality imaging with 8 MP resolution Excellent low-light performance with DarkFighter technology 48× optical zoom and 16× digital zoom provide close up views over expansive areas Expansive night view with up to 500 m laser distance Water and dust resistant (IP67) Supports face capture to detect, capture, grade, and select faces in motion Supports road traffic to detect vehicles

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Hikvision
Manufacturer	Hikvision USA Inc.
Category	Video Surveillance>IP Dome cameras
Model code	DS-2DF8C848I5XS-AELW(T5)
Series	Hikvision Ultra Series
Chip Inch Size	1/1.8
Color Type	Color / Monochrome
Resolution TVL	4K
Megapixel	Yes
Dome Type	PTZ
Sensitivity lux	Color: 0.002 Lux, B/W: 0.0002
Pan Speed ^o/ sec	configurable from 0.1° to 210°/s; preset speed: 280
Tilt Speed ^o/ sec	configurable from 0.1° to 150°/s, preset speed 250
Mount Type	Pole, Wall, Pendant
Electrical Specifications	Voltage: 24 V AC, PoE
Focal length	6.0 to 288 mm
Presets	300
Compression	H.265+/H.265/H.264+/H.264 /MJPEG
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/1 s to 1/30,000 s
S/ N (Signal/ Noise) Ratio dB	≥52
Zoom Ratio	48x
Network Properties	Interface: 1 RJ45 10M/100M self-adaptive Ethernet port Network Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Physical Specifications	Dimensions mm: Ø 267 x 430 Weight g: 9600
Environmental Specifications	Operating Temp ^oC: -40 ~ +70 C (-40 ~ +158 F) Operating Humidity %: ≤ 95 Protection: IP67
Additional info	1/1.8" progressive scan CMOS High quality imaging with 8 MP resolution Excellent low-light performance with DarkFighter technology 48× optical zoom and 16× digital zoom provide close up views over expansive areas Expansive night view with up to 500 m laser distance Water and dust resistant (IP67) Supports face capture to detect, capture, grade, and select faces in motion Supports road traffic to detect vehicles
