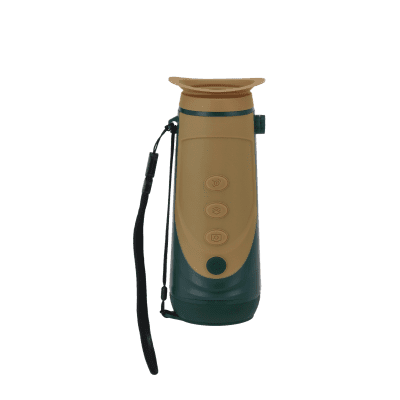

Dahua TPC-M60 Thermal Monocular Camera

Technical Specification

This product model is not available in this region

Features:

Make: Dahua Technology
Model code: TPC-M60
Resolution TVL: 640 x 512
Specialist Types: Thermal
Voltage: 5 V DC

Additional info:

Vanadium oxide uncooled focal plane detector. Ultra-low power consumption. Fire detection and alarm. Connects to the mobile app through Wi-Fi. Connects to the external display through the CVBS port. Provides a laser for aiming. Calculates distance using video analysis. Lightweight and portable. IP67 rated.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>Surveillance cameras
Model code	TPC-M60
Resolution TVL	640 x 512
Specialist Types	Thermal
Electrical Specifications	Voltage: 5 V DC Power Consumption: <2.2 W
Focal Length mm	18 mm; 25 mm
Zoom	Yes
Physical Specifications	Dimension mm: 187.5 x 66.5 x 68.5 Weight g: 450
Environmental Specifications	Operating Temperature ^oC: -20 ~ +55 C (-4 ~ +131 F) Protection: IP67 Operating Humidity %: ≤90
Additional info	Vanadium oxide uncooled focal plane detector. Ultra-low power consumption. Fire detection and alarm. Connects to the mobile app through Wi-Fi. Connects to the external display through the CVBS port. Provides a laser for aiming. Calculates distance using video analysis. Lightweight and portable. IP67 rated.
