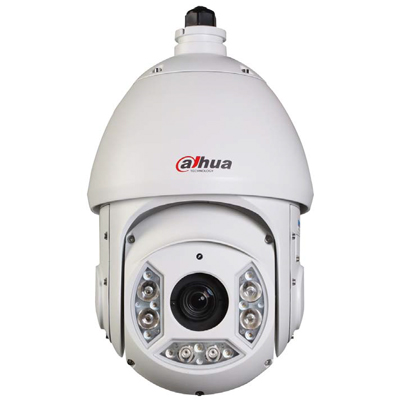

Dahua Technology SD6C63E-H WDR IR PTZ High Speed Dome Camera

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: SD6C63E-H
  • Chip Inch Size: 1/4
  • Color Type: Color / Monochrome
  • Resolution TVL: 600 TVL
Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code SD6C63E-H
Chip Inch Size 1/4
Color Type Color / Monochrome
Resolution TVL 600 TVL
Dome Type PTZ
Sensitivity lux 0.7
Pan Speed o/ sec 0.1 ~ 160
Digital (DSP) Yes
Tilt Speed o/ sec 0.1 ~ 120
Indoor/Outdoor Indoor/Outdoor
Electrical Specifications Voltage: 12 V DC
Power Consumption: 15 W
Focal length 4.1 ~ 73.8 mm
Presets 255
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/3(4) ~ 1/10,000 s
S/ N (Signal/ Noise) Ratio dB >50
Signal Mode PAL/NTSC
Built-in IR LED Yes
Video Output 1.0Vp-p/75Ohms
Zoom Ratio x12
Physical Specifications Dimensions mm: 185 x 299
Weight g: 5,000
Environmental Specifications Operating Temp oC: -40 ~ +60
Operating Humidity %: < 90
Protection: IP66
