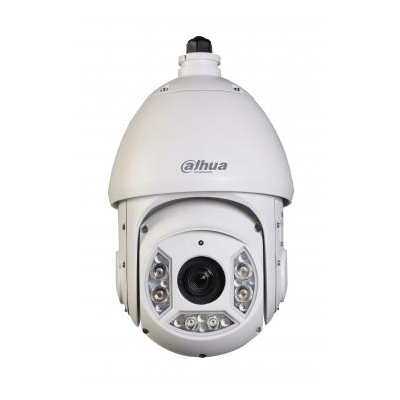

Dahua Technology SD6C36E-H 1/4-inch IR PTZ Dome Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: SD6C36E-H
- Chip Inch Size: 1/4
- Color Type: Color / Monochrome
- Resolution TVL: 650
Additional info:
Dahua Technology SD6C36E-H is a 1/4-inch IR PTZ dome camera with 36x optical zoom, up to 255 presets, 5 auto scan, 8 tour, 5 pattern and IP66, IR distance up to 100m.
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>Dome cameras |
| Model code | SD6C36E-H |
| Chip Inch Size | 1/4 |
| Color Type | Color / Monochrome |
| Resolution TVL | 650 |
| Dome Type | PTZ |
| Pan Speed o/ sec | Manual: 0.1 ~ 160 |
| Digital (DSP) | Yes |
| Tilt Speed o/ sec | Manual: 0.1 ~ 120 |
| Indoor/Outdoor | Indoor/Outdoor |
| Electrical Specifications |
Voltage: 24 V AC Power Consumption: 15 W |
| Focal length | 3.4 ~ 122.4 mm |
| Rotation Angleso | 360 |
| Presets | 255 |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/1 ~ 1/100,000 sec |
| S/ N (Signal/ Noise) Ratio dB | >50 |
| Signal Mode | PAL, NTSC |
| Built-in IR LED | Yes |
| Video Output | BNC (1.0Vp - p/75 ohms) |
| Zoom Ratio | x36 |
| Network Properties | Interface: RS485 |
| Physical Specifications |
Dimensions mm: 205 x 336 Weight g: 5,000 |
| Environmental Specifications |
Operating Temp oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: <90 Protection: IP66 |
| Additional info | Dahua Technology SD6C36E-H is a 1/4-inch IR PTZ dome camera with 36x optical zoom, up to 255 presets, 5 auto scan, 8 tour, 5 pattern and IP66, IR distance up to 100m. |
