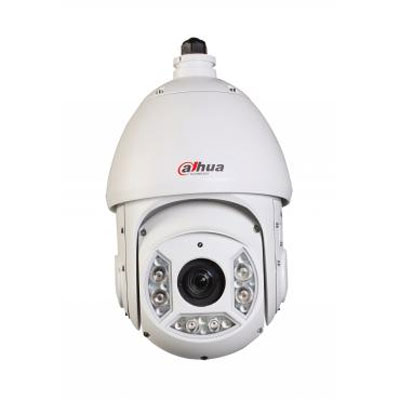

Dahua Technology SD6C23E-H 650 TVL IR PTZ High Speed Dome Camera
Technical Specification
| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>Dome cameras |
| Model code | SD6C23E-H |
| Chip Inch Size | 1/4 |
| Color Type | Color / Monochrome |
| Resolution TVL | 650 |
| Dome Type | PTZ |
| Indoor/Outdoor | Indoor/Outdoor |
| Digital (DSP) | Yes |
| Electrical Specifications |
Voltage: 24 V AC Power Consumption: 15W |
| Focal length | 3.9 ~ 89.7mm |
| Presets | 255 |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/1s ~1/100,000s |
| S/ N (Signal/ Noise) Ratio dB | >50 |
| Signal Mode | PAL/NTSC |
| Built-in IR LED | Yes |
| Video Output | BNC(1.0Vp-p/75ohms) |
| Zoom Ratio | x16 |
| Network Properties | Control: PTZ |
| Physical Specifications |
Dimensions mm: 205 x 336 Weight g: 5,000 |
| Environmental Specifications |
Operating Temp oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: >90 Protection: IP66 |
| Additional info | Dahua Technology SD6C23E-H is a 650 TVL IR PTZ high speed dome camera. It has a powerful 16x optical zoom and up to 255 presets. |
