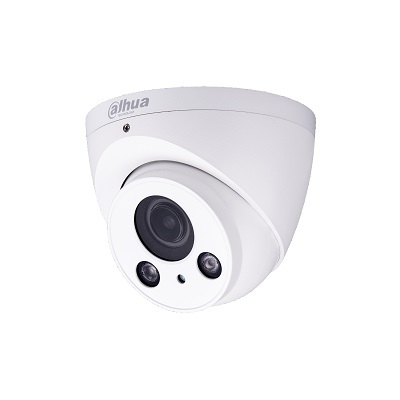

Dahua Technology HAC-HDW2221R-Z-DP 2MP WDR HDCVI IR Eyeball Camera

Please note: this is a discontinued product.

See relevant products

Features:

Additional info:

120dB true WDR, 3DNR Max 30fps@1080P HD and SD dual-output 2.7-12mm motorized lens Max. IR length 60m, Smart IR IP67, AC24V/DC12V

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>Dome cameras
Model code	HAC-HDW2221R-Z-DP
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution TVL	2MP
HD	Yes
Sensitivity lux	0 ~ 0.03
Indoor/Outdoor	Indoor/Outdoor
Digital (DSP)	Yes
Electrical Specifications	Voltage: 12 V DC, 24 V AC Power Consumption: 12 W
Focal length	2.7 ~ 12mm
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1.3 ~ 1/30000s
S/ N (Signal/ Noise) Ratio dB	65
Signal Mode	PAL, NTSC
Built-in IR LED	Yes
Video Output	1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output
Network Properties	Image Frame Rate: 25 ~ 30 fps
Physical Specifications	Dimensions mm: 122 x 105 Weight g: 580
Environmental Specifications	Operating Temp ^oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: 0 ~ 90 Protection: IP67
Additional info	120dB true WDR, 3DNR Max 30fps@1080P HD and SD dual-output 2.7-12mm motorized lens Max. IR length 60m, Smart IR IP67, AC24V/DC12V
