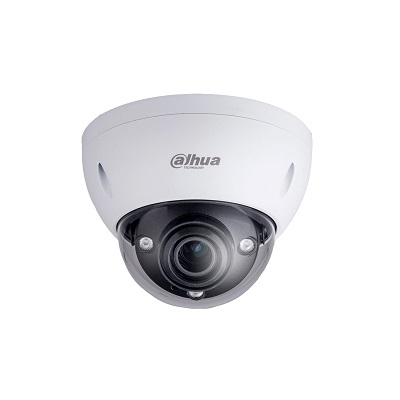

Dahua Technology HAC-HDBW3802E-ZH 8MP HDCVI WDR IR-dome Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: HAC-HDBW3802E-ZH
- Series: Ultra series
- Chip Inch Size: 1/2
- Color Type: Color / Monochrome
Additional info:
1/2” 8Megapixel progressive scan CMOS 3x optical motorized zoom lens Max. 15fps@3840×2160 120db true WDR,2D&3D NR Intelligent functions Max.50m IR distance,smart IR IP67&IK10 ingress protection Dual voltage input(DC 12v±25%/AC 24V±25%)
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>Dome cameras |
| Model code | HAC-HDBW3802E-ZH |
| Chip Inch Size | 1/2 |
| Color Type | Color / Monochrome |
| Resolution TVL | 8MP |
| Sensitivity lux | 0 ~ 0.01 |
| Digital (DSP) | Yes |
| Mount Type | Wall, Pole, Ceiling |
| Electrical Specifications |
Voltage: 12 V DC, 24 V AC Power Consumption: 12.4 W |
| Focal length | 3.7 ~ 11 |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/1 ~ 1/100,00s |
| S/ N (Signal/ Noise) Ratio dB | 65 |
| Video Output | 1-channel HDCVI 4K video output & 1-channel CVBS video output |
| Physical Specifications |
Dimensions mm: 159 x 118 Weight g: 900 |
| Environmental Specifications |
Operating Temp oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: 0 ~ 95 Protection: IP67, IK10 |
| Additional info |
|
