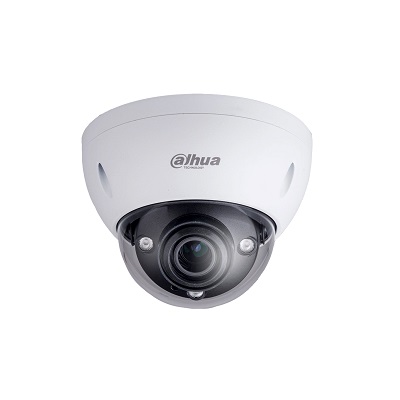

Dahua Technology HAC-HDBW3802E-Z 8MP HDCVI WDR IR-dome Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: HAC-HDBW3802E-Z
- Series: Ultra series
- Chip Inch Size: 1/2
- Color Type: Color / Monochrome
Additional info:
1/2” 8Megapixel progressive scan CMOS 3x optical motorized zoom lens Max. 15fps@3840×2160 120db true WDR,2D&3D NR Intelligent functions Max.50m IR distance,smart IR IP67&IK10 ingress protection
Read moreMake | Dahua Technology |
---|---|
Manufacturer | Dahua Technology USA Inc. |
Category | Video Surveillance>Dome cameras |
Model code | HAC-HDBW3802E-Z |
Chip Inch Size | 1/2 |
Color Type | Color / Monochrome |
Resolution TVL | 8MP |
HD | Yes |
Sensitivity lux | 0 ~ 0.01 |
Digital (DSP) | Yes |
Electrical Specifications |
Voltage: 12 V DC, 24 V AC Power Consumption: 12.4 W |
Focal length | 3.7 ~ 11mm |
Back Light Compensation | Yes |
Auto Gain Control | Yes |
White Balance | Yes |
Electronic Shutter range | 1/1 ~ 1/100,00s |
S/ N (Signal/ Noise) Ratio dB | 65 |
Video Output | 1-channel HDCVI 4K video output & 1-channel CVBS video output |
Physical Specifications |
Dimensions mm: 159 x 118 Weight g: 900 |
Environmental Specifications |
Operating Temp oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: 0 ~ 95 Protection: IP67, IK10 |
Additional info |
|
Download PDF version Download PDF version |
