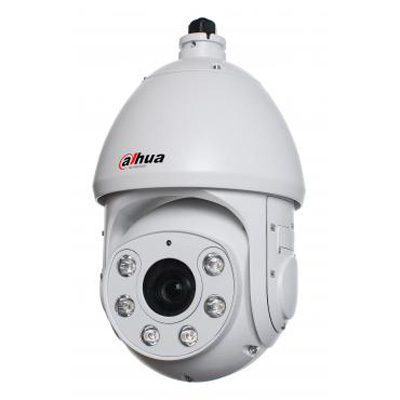

Dahua Technology H-SD6463E-HN WDR IR X18 Zoom PTZ Dome Camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology H-SD6463E-HN WDR IR X18 Zoom PTZ Dome Camera

Features:

Make: Dahua Technology
Model code: H-SD6463E-HN
Chip Inch Size: 1/3
Color Type: Color / Monochrome
Resolution TVL: 600

Additional info:

H-SD6463E-HN is a 18x WDR IR PTZ dome camera. It has the following features: Support intelligent 3D positioning with DH-SD protocol; Up to 255 presets, 5 auto scan, 8 tour, 5 pattern; Max 240 °/s pan speed, 360° continuous pan rotation.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>Dome cameras
Model code	H-SD6463E-HN
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution TVL	600
Sensitivity lux	0.01
Dome Type	PTZ
Pan Speed ^o/ sec	0 ~ 360
Indoor/Outdoor	Indoor/Outdoor
Tilt Speed ^o/ sec	-15 ~ 90
Electrical Specifications	Voltage: 24 VAC Power Consumption: 13W
Focal length	4.1 ~ 73.8
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/3(4) ~ 1/10000
S/ N (Signal/ Noise) Ratio dB	>50
Signal Mode	PAL / NTSC
Built-in IR LED	Yes
Video Output	BNC ( 1.0Vp-p/ 75 ohm)
Zoom Ratio	x18
Physical Specifications	Dimensions mm: 185 x 299 Weight g: 5000
Environmental Specifications	Operating Temp ^oC: -40 ~ 60 Operating Humidity %: <90 Protection: IP66
Additional info	H-SD6463E-HN is a 18x WDR IR PTZ dome camera. It has the following features: Support intelligent 3D positioning with DH-SD protocol; Up to 255 presets, 5 auto scan, 8 tour, 5 pattern; Max 240 °/s pan speed, 360° continuous pan rotation.
