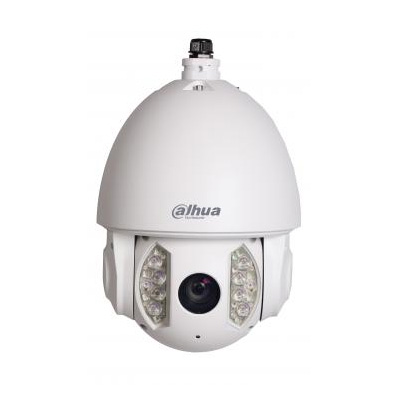

Dahua Technology DH-SD6A63E-H IR PTZ Dome Camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology DH-SD6A63E-H IR PTZ Dome Camera

Features:

Make: Dahua Technology
Model code: DH-SD6A63E-H
Chip Inch Size: 1/4
Color Type: Color / Monochrome
Resolution TVL: 650

Additional info:

Dahua Technology DH-SD6A63E-H IR PTZ dome camera supports intelligent 3D positioning with DH-SD protocol. The camera has the following features DWDR, day/night (ICR), DNR (2D&3D), auto iris, auto focus, AWB, AGC, BLC,EIS, max 240°/s pan speed, 360° continuous pan rotation.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>Dome cameras
Model code	DH-SD6A63E-H
Chip Inch Size	1/4
Color Type	Color / Monochrome
Resolution TVL	650
Sensitivity lux	0.01
Dome Type	PTZ
Pan Speed ^o/ sec	0.1 ~ 200
Digital (DSP)	Yes
Tilt Speed ^o/ sec	0.1 ~ 120
Indoor/Outdoor	Indoor/Outdoor
Electrical Specifications	Voltage: 24 V AC Power Consumption: 20 W
Focal length	4.1 ~ 73.8 mm
Presets	255
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/3(4) ~ 1/10,000 s
S/ N (Signal/ Noise) Ratio dB	>50
Signal Mode	PAL / NTSC
Built-in IR LED	Yes
Video Output	BNC(1.0Vp-p/75 ohms)
Zoom Ratio	x18
Network Properties	Control: PTZ
Physical Specifications	Dimensions mm: 252 x 384 Weight g: 6,750
Environmental Specifications	Operating Temp ^oC: -40 ~ +70 C (-40 ~ +158 F) Operating Humidity %: <90 Protection: IP66
Additional info	Dahua Technology DH-SD6A63E-H IR PTZ dome camera supports intelligent 3D positioning with DH-SD protocol. The camera has the following features DWDR, day/night (ICR), DNR (2D&3D), auto iris, auto focus, AWB, AGC, BLC,EIS, max 240°/s pan speed, 360° continuous pan rotation.
