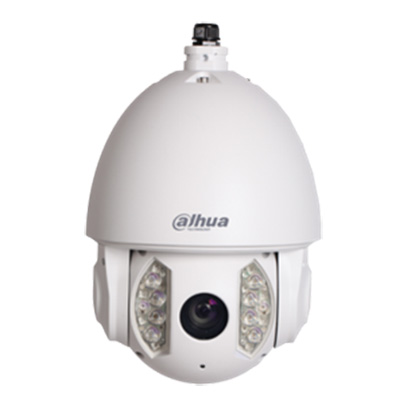

Dahua Technology DH-SD6A220I-HC 2 Megapixel 1080P IR PTZ Dome Camera

Please note: this is a discontinued product.

See relevant products

Features:

Additional info:

DH-SD6A220I-HC is a 2 megapixel 1080P IR PTZ dome camera featuring control over coaxial cable, and long distance real-time transmission.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>Dome cameras
Model code	DH-SD6A220I-HC
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution TVL	2MP
Dome Type	PTZ
Sensitivity lux	0.005
Pan Speed ^o/ sec	Manual: 0.1 ~ 200, Preset 240
Indoor/Outdoor	Indoor/Outdoor
Digital (DSP)	Yes
Tilt Speed ^o/ sec	Manual: 0.1 ~ 120, Preset 200
Electrical Specifications	Voltage: 24 V AC Power Consumption: 15.2 W
Focal length	4.7 ~ 94 mm
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/1 ~1/30,000s
S/ N (Signal/ Noise) Ratio dB	55
Built-in IR LED	Yes
Video Output	1-channel BNC HDCVI
Zoom Ratio	x16
Network Properties	Image Frame Rate: 30 fps / 25 fps
Physical Specifications	Dimensions mm: 252 x 384 Weight g: 6,750
Environmental Specifications	Operating Temp ^oC: -40 ~ +70 C (-40 ~ +158 F) Operating Humidity %: 0 ~ 90 Protection: IP66
Additional info	DH-SD6A220I-HC is a 2 megapixel 1080P IR PTZ dome camera featuring control over coaxial cable, and long distance real-time transmission.
