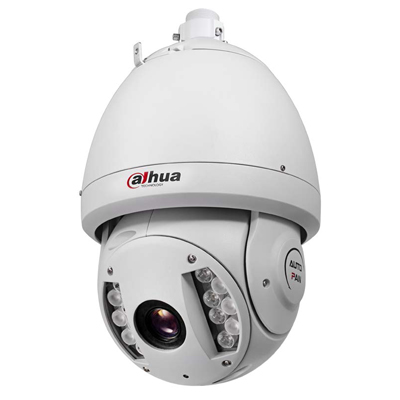

Dahua Technology DH-SD6966E-H 1/4-inch IR PTZ dome camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology DH-SD6966E-H 1/4-inch IR PTZ dome camera

Features:

Make: Dahua Technology
Model code: DH-SD6966E-H
Chip Inch Size: 1/4
Color Type: Color / Monochrome
Resolution TVL: 650

Additional info:

Dahua Technology DH-SD6966E-H is a 1/4-inch IR PTZ dome camera with 36x optical zoom. This PTZ camera features DWDR, day/night (ICR), DNR (2D&3D), auto iris, auto focus, AWB, AGC, BLC, built-in 7/2 alarm in/out and intelligent 3D positioning with DH-SD protocol support.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>Dome cameras
Model code	DH-SD6966E-H
Chip Inch Size	1/4
Color Type	Color / Monochrome
Resolution TVL	650
Dome Type	PTZ
Sensitivity lux	0.01
Pan Speed ^o/ sec	Manual: 0.1 ~ 160
Indoor/Outdoor	Indoor/Outdoor
Digital (DSP)	Yes
Tilt Speed ^o/ sec	Manual: 0.1 ~ 120
Electrical Specifications	Voltage: 24 V AC Power Consumption: 17 W
Focal length	3.4 ~ 122.4
Rotation Angles^o	360
Presets	255
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/3 (4) ~ 1/10000 sec
S/ N (Signal/ Noise) Ratio dB	>50
Signal Mode	PAL/NTSC
Built-in IR LED	Yes
Video Output	BNC, 1.0Vpp/75 ohms
Zoom Ratio	x36
Network Properties	Interface: RS485
Physical Specifications	Dimensions mm: 252 x 384 Weight g: 6,000
Environmental Specifications	Operating Temp ^oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: <95 Protection: IP66
Additional info	Dahua Technology DH-SD6966E-H is a 1/4-inch IR PTZ dome camera with 36x optical zoom. This PTZ camera features DWDR, day/night (ICR), DNR (2D&3D), auto iris, auto focus, AWB, AGC, BLC, built-in 7/2 alarm in/out and intelligent 3D positioning with DH-SD protocol support.
