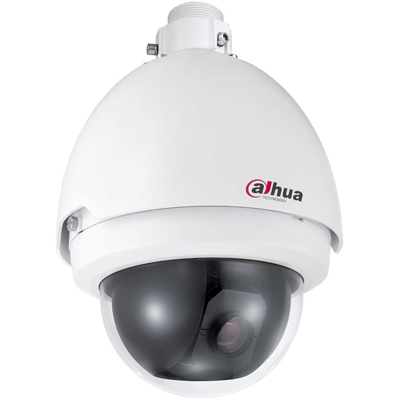

Dahua Technology DH-SD6563E-H 18x WDR PTZ Dome Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: DH-SD6563E-H
- Chip Inch Size: 1/4
- Color Type: Color / Monochrome
- Resolution TVL: 650 TVL
| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>Dome cameras |
| Model code | DH-SD6563E-H |
| Chip Inch Size | 1/4 |
| Color Type | Color / Monochrome |
| Resolution TVL | 650 TVL |
| Dome Type | PTZ |
| Sensitivity lux | 0.01 |
| Pan Speed o/ sec | 0.1 ~ 300 |
| Indoor/Outdoor | Indoor/Outdoor |
| Digital (DSP) | Yes |
| Tilt Speed o/ sec | 0.1 ~ 250 |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 15 W |
| Focal length | 4.1 ~ 73.8 mm |
| Presets | 255 |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/3(4) ~ 1/10000 sec |
| S/ N (Signal/ Noise) Ratio dB | >50 |
| Signal Mode | PAL/NTSC |
| Video Output | 1.0Vp-p/75Ohms |
| Zoom Ratio | x18 |
| Physical Specifications |
Dimensions mm: 222 x 322 Weight g: 5,000 |
| Environmental Specifications |
Operating Temp oC: -40 ~ +60 Operating Humidity %: < 90 Protection: IP67 |
