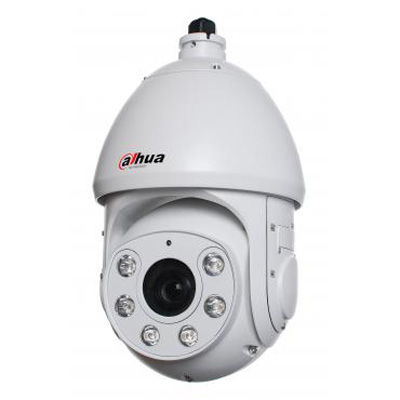

Dahua Technology DH-SD6466E-HN 36x WDR IR PTZ Dome Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: DH-SD6466E-HN
- Chip Inch Size: 1/4
- Color Type: Color / Monochrome
- Resolution TVL: 600
Additional info:
DH-SD6466E-HNis a 36x WDR IR PTZ dome camera. It has the following features: Support intelligent 3D positioning with DH-SD protocol; Up to 255 presets, 5 auto scan, 8 tour, 5 pattern;Max 240 °/s pan speed, 360° continuous pan rotation.
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>Dome cameras |
| Model code | DH-SD6466E-HN |
| Chip Inch Size | 1/4 |
| Color Type | Color / Monochrome |
| Resolution TVL | 600 |
| Sensitivity lux | 0.01 |
| Dome Type | PTZ |
| Indoor/Outdoor | Indoor/Outdoor |
| Electrical Specifications |
Voltage: 24 V AC Power Consumption: 13W |
| Focal length | 3.4 ~ 122.4 |
| Rotation Angleso | 360 |
| Presets | 80 |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/3(4) ~ 1/10000 |
| S/ N (Signal/ Noise) Ratio dB | >50 |
| Signal Mode | PAL / NTSC |
| Video Output | BNC ( 1.0Vp-p/ 75 ohm) |
| Zoom Ratio | x36 |
| Physical Specifications |
Dimensions mm: 185 x 299 Weight g: 5000 |
| Environmental Specifications |
Operating Temp oC: -40 ~ 60 C Operating Humidity %: <90 Protection: IP66 |
| Additional info | DH-SD6466E-HNis a 36x WDR IR PTZ dome camera. It has the following features: Support intelligent 3D positioning with DH-SD protocol; Up to 255 presets, 5 auto scan, 8 tour, 5 pattern;Max 240 °/s pan speed, 360° continuous pan rotation. |
