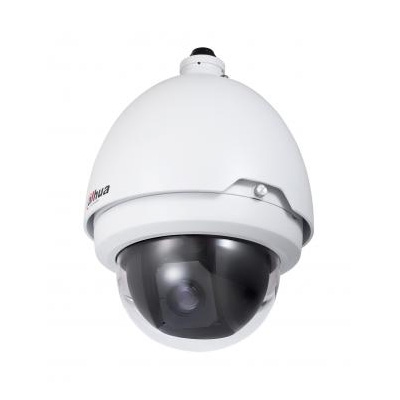

Dahua Technology DH-SD6323E-H PTZ Dome Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: DH-SD6323E-H
- Chip Inch Size: 1/4
- Color Type: Color / Monochrome
- Resolution TVL: 700
Additional info:
Dahua Technology DH-SD6323E-H PTZ dome camera supports intelligent 3D positioning with DH-SD protocol. The camera has the following features DWDR, day/night (ICR), DNR (2D&3D), auto iris, auto focus, AWB, AGC, BLC.
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>Dome cameras |
| Model code | DH-SD6323E-H |
| Chip Inch Size | 1/4 |
| Color Type | Color / Monochrome |
| Resolution TVL | 700 |
| Dome Type | PTZ |
| Sensitivity lux | 0.001 |
| Pan Speed o/ sec | 0.1 ~ 250 |
| Indoor/Outdoor | Indoor/Outdoor |
| Digital (DSP) | Yes |
| Tilt Speed o/ sec | 0.1 ~ 150 |
| Electrical Specifications |
Voltage: 24 V AC Power Consumption: 12 W |
| Focal length | 3.9 ~ 89.7 mm |
| Presets | 255 |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/1 ~ 1/100,000 s |
| S/ N (Signal/ Noise) Ratio dB | >50 |
| Signal Mode | PAL / NTSC |
| Video Output | BNC(1.0Vp-p/75 ohms) |
| Zoom Ratio | x23 |
| Network Properties | Control: PTZ |
| Physical Specifications |
Dimensions mm: 222 x 324 Weight g: 5,000 |
| Environmental Specifications |
Operating Temp oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: <90 Protection: IP66, IK10 |
| Additional info |
Dahua Technology DH-SD6323E-H PTZ dome camera supports intelligent 3D positioning with DH-SD protocol. The camera has the following features DWDR, day/night (ICR), DNR (2D&3D), auto iris, auto focus, AWB, AGC, BLC. |
