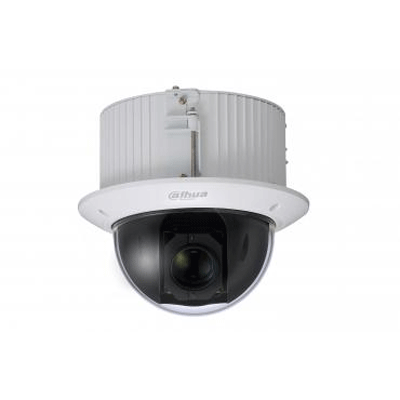

Dahua Technology DH-SD52C23E/36E-H Ultra-high Speed PTZ Dome CCTV Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: DH-SD52C23E/36E-H
- Chip Inch Size: 1/4
- Color Type: True Day / Night
- Resolution TVL: 650
Additional info:
The DH-SD52C23E/36E-H dome camera from Dahua offers built-in 2/1 alarm input/output and support intelligent 3D positioning with DH-SD protocol.
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>Dome cameras |
| Model code | DH-SD52C23E/36E-H |
| Chip Inch Size | 1/4 |
| Color Type | True Day / Night |
| Resolution TVL | 650 |
| HD | Yes |
| Dome Type | PTZ |
| Sensitivity lux | 0.01 |
| Pan Speed o/ sec | 500 |
| Tilt Speed o/ sec | 500 |
| Mount Type | Ceiling |
| Electrical Specifications |
Voltage: 24 V AC Power Consumption: 13 W |
| Focal length | 3.9 ~ 89.7mm |
| Rotation Angleso | 61.68 ~ 3.06 |
| Presets | 300 |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/1 ~ 1/100,000s |
| S/ N (Signal/ Noise) Ratio dB | 50dB |
| Video Output | 1.0Vpp, 75 Ohm |
| Zoom Ratio | x36 |
| Network Properties |
Interface: RS485 Network Protocols: DH-SD, Pelco-P/D |
| Physical Specifications |
Dimensions mm: 198 x 177 Weight g: 2200 |
| Environmental Specifications |
Operating Temp oC: -20 C ~ +60 C Operating Humidity %: 0~90 Protection: IK10 |
| Additional info | The DH-SD52C23E/36E-H dome camera from Dahua offers built-in 2/1 alarm input/output and support intelligent 3D positioning with DH-SD protocol. |
