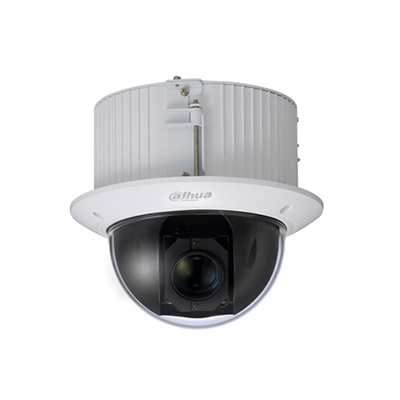

Dahua Technology DH-SD52C220I-HC 2 Megapixel PTZ Dome Camera

Please note: this is a discontinued product.

See relevant products

Features:

Additional info:

DH-SD52C220I-HC is a 2 megapixel PTZ dome camera featuring control over coaxial cable, and long distance real-time transmission.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>Dome cameras
Model code	DH-SD52C220I-HC
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution TVL	2 MP
HD	Yes
Sensitivity lux	0.005
Dome Type	PTZ
Pan Speed ^o/ sec	Manual: 0.1 ~ 350, Preset 500
Digital (DSP)	Yes
Tilt Speed ^o/ sec	Manual: 0.1 ~ 250, Preset 500
Indoor/Outdoor	Indoor/Outdoor
Electrical Specifications	Voltage: 24 V AC Power Consumption: 10 W
Focal length	4.7 ~ 94 mm
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/1 ~1/30,000s
S/ N (Signal/ Noise) Ratio dB	50
Video Output	1-channel BNC HDCVI
Zoom Ratio	x16
Network Properties	Image Frame Rate: 30 fps / 20 fps
Physical Specifications	Dimensions mm: 198 x 177 Weight g: 2,200
Environmental Specifications	Operating Temp ^oC: -20 ~ +60 C (-4 ~ +140 F) Operating Humidity %: 0 ~ 90 Protection: IK10
Additional info	DH-SD52C220I-HC is a 2 megapixel PTZ dome camera featuring control over coaxial cable, and long distance real-time transmission.
