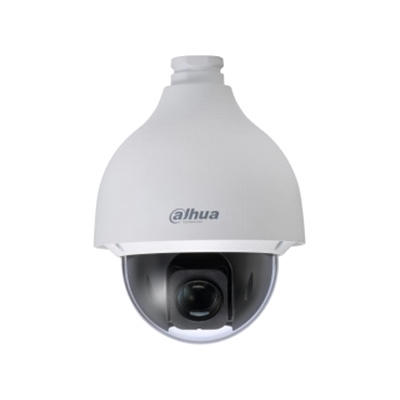

Dahua Technology DH-SD50230I-HC 2megapixel Full HD PTZ Dome Camera

Please note: this is a discontinued product.

See relevant products

Features:

Additional info:

DH-SD50230I-HC is a 2megapixel full HD PTZ dome camera featuring control over coaxial cable, and long distance real-time transmission.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>Dome cameras
Model code	DH-SD50230I-HC
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution TVL	2MP
HD	Yes
Dome Type	PTZ
Sensitivity lux	0.0005
Pan Speed ^o/ sec	Manual: 0.1 ~ 350, Preset 500
Digital (DSP)	Yes
Tilt Speed ^o/ sec	Manual: 0.1 ~ 250, Preset 500
Indoor/Outdoor	Indoor/Outdoor
Electrical Specifications	Voltage: 24 V AC Power Consumption: 10 W
Focal length	4.5 ~ 135 mm
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/1 ~ 1/30,000s
S/ N (Signal/ Noise) Ratio dB	50
Video Output	1-channel BNC HDCVI
Zoom Ratio	x16
Network Properties	Image Frame Rate: 30 fps / 20 fps
Physical Specifications	Dimensions mm: 186 x 253 Weight g: 2,500
Environmental Specifications	Operating Temp ^oC: -40 ~ +70 C (-40 ~ +158 F) Operating Humidity %: 0 ~ 90 Protection: IP67, IK10
Additional info	DH-SD50230I-HC is a 2megapixel full HD PTZ dome camera featuring control over coaxial cable, and long distance real-time transmission.
