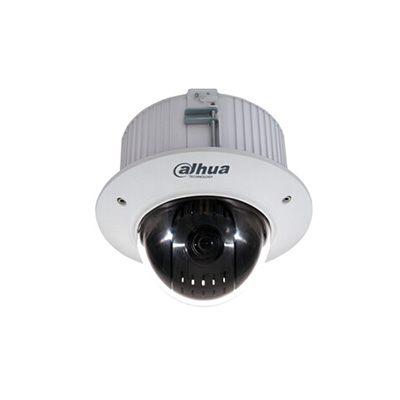

Dahua Technology DH-SD42C212I-HC 2 Megapixel Mini HDCVI PTZ Dome Camera

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: DH-SD42C212I-HC
  • Chip Inch Size: 1/3
  • Color Type: Color / Monochrome
  • Resolution TVL: 2MP
Read more
Additional info:

DH-SD42C212I-HC is a 2 megapixel mini HDCVI PTZ dome camera featuring control over coaxial cable, and long distance real-time transmission.

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code DH-SD42C212I-HC
Chip Inch Size 1/3
Color Type Color / Monochrome
Resolution TVL 2MP
HD Yes
Dome Type PTZ
Sensitivity lux 0.005
Pan Speed o/ sec Manual: 0.1 ~ 300, Preset 300
Digital (DSP) Yes
Tilt Speed o/ sec Manual: 0.1 ~ 120, Preset 200
Indoor/Outdoor Indoor/Outdoor
Electrical Specifications Voltage: 24 V AC
Power Consumption: 10 W
Focal length 5.1 ~ 61.2 mm
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/1 ~1/30,000s
S/ N (Signal/ Noise) Ratio dB 55
Video Output 1-channel BNC HDCVI
Zoom Ratio x12
Network Properties Image Frame Rate: 30 fps / 25 fps
Physical Specifications Dimensions mm: 198 x 158
Weight g: 2,000
Environmental Specifications Operating Temp oC: -10 ~ +60 C (14 ~ 140 F)
Operating Humidity %: 0 ~ 90
Protection: IK10
Additional info

DH-SD42C212I-HC is a 2 megapixel mini HDCVI PTZ dome camera featuring control over coaxial cable, and long distance real-time transmission.
