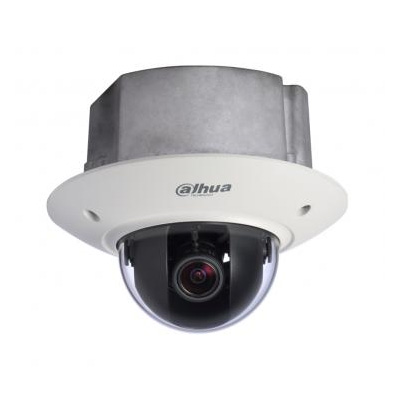

Dahua Technology DH-IPC-HDB3101P-DI 1.3 MP HD WDR Dome Camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology DH-IPC-HDB3101P-DI 1.3 MP HD WDR Dome Camera

Features:

Make: Dahua Technology
Model code: DH-IPC-HDB3101P-DI
Chip Inch Size: 1/3
Color Type: Color / Monochrome
Resolution TVL: 1.3 MP

Additional info:

Dahua Technology DH-IPC-HDB3101P-DI 1.3 MP HD WDR dome camera supports multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS. The camera has the following features: WDR, day/night(ICR), 2DNR, auto iris, AWB, AGC, BLC, 2.8 ~ 12 mm varifocal lens, built-in 1/1 alarm in/out.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP Dome cameras
Model code	DH-IPC-HDB3101P-DI
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution TVL	1.3 MP
HD	Yes
Megapixel	Yes
Sensitivity lux	0.005
Digital (DSP)	Yes
Electrical Specifications	Voltage: 24 V AC Power Consumption: <3 W
Focal length	2.8 ~ 12 mm
Compression	H.264 / MJPEG
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/3 ~ 1/10,000 s
S/ N (Signal/ Noise) Ratio dB	>50
Video Output	BNC(1.0Vp-p, 75 ohms)
Network Properties	Interface: RJ-45 (10/100Base-T) Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour Image Frame Rate: 30 fps
Physical Specifications	Dimensions mm: 146 x 139 Weight g: 1,180
Environmental Specifications	Operating Temp ^oC: -10 ~ +60 C (14 ~ 140 F) Operating Humidity %: 10 ~ 90 Protection: IP66, IK10
Additional info	Dahua Technology DH-IPC-HDB3101P-DI 1.3 MP HD WDR dome camera supports multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS. The camera has the following features: WDR, day/night(ICR), 2DNR, auto iris, AWB, AGC, BLC, 2.8 ~ 12 mm varifocal lens, built-in 1/1 alarm in/out.
