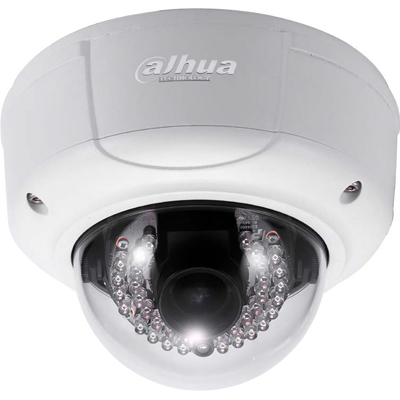

Dahua Technology DH-HDC-HDBW3200P 2 MP Vandal-proof IR HD-SDI Dome Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: DH-HDC-HDBW3200P
- Chip Inch Size: 1/3
- Color Type: Color / Monochrome
- Resolution TVL: 2 MP
| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>Dome cameras |
| Model code | DH-HDC-HDBW3200P |
| Chip Inch Size | 1/3 |
| Color Type | Color / Monochrome |
| Resolution TVL | 2 MP |
| HD | Yes |
| Dome Type | Static |
| Sensitivity lux | 0.1 |
| Digital (DSP) | Yes |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: <12 W |
| Focal length | 3.3 ~ 12 mm |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/3 ~ 1/10000 s |
| S/ N (Signal/ Noise) Ratio dB | >52 |
| Built-in IR LED | Yes |
| Video Output | 1Vp-p Composite Output 75 Ohms |
| Network Properties | Image Frame Rate: 25 fps |
| Physical Specifications |
Dimensions mm: 160 x 119 Weight g: 1,250 |
| Environmental Specifications |
Operating Temp oC: -10 ~ +60 Operating Humidity %: 10 ~ 90 Protection: IP66 |
