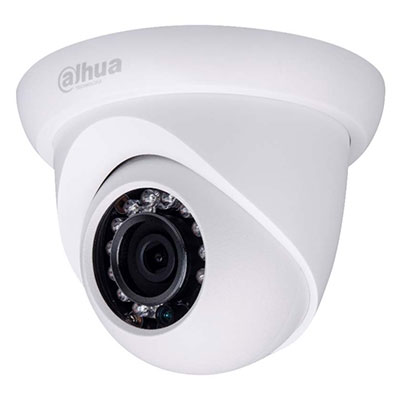

Dahua Technology DH-HAC-HDW2220SP 2.4 Megapixel 1080P Water-proof IR HDCVI Mini Dome Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: DH-HAC-HDW2220SP
- Chip Inch Size: 1/3
- Color Type: Color / Monochrome
- Resolution TVL: 1080P
Additional info:
High speed, long distance real-time transmission HD and SD switchable OSD Menu, control over coaxial cable DWDR, Day/Night(ICR), AWB, AGC, BLC, 3DNR
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>Dome cameras |
| Model code | DH-HAC-HDW2220SP |
| Chip Inch Size | 1/3 |
| Color Type | Color / Monochrome |
| Resolution TVL | 1080P |
| HD | Yes |
| Dome Type | Static |
| Sensitivity lux | 0.05 |
| Digital (DSP) | Yes |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 3.5 W |
| Focal length | 3.6 mm |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/3s~1/100,000s |
| Synchronisation | Internal |
| Video Output | 1-channel BNC HDCVI / CVBS |
| Network Properties | Image Frame Rate: 30 fps / 25 fps |
| Physical Specifications |
Dimensions mm: 108 x 85 Weight g: 350 |
| Environmental Specifications |
Operating Temp oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: < 95 Protection: IP67 |
| Additional info |
|
