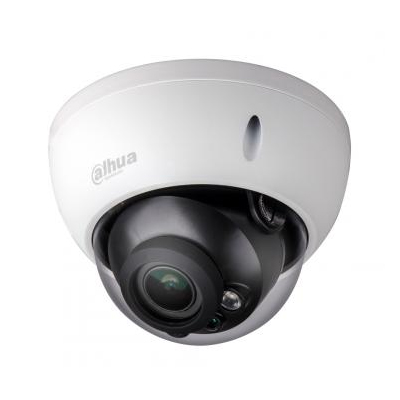

Dahua Technology DH-HAC-HDBW2220RP-Z 1/3-inch IR HDCVI Dome Camera
Technical Specification
- Make: Dahua Technology
- Model code: DH-HAC-HDBW2220RP-Z
- Resolution TVL: 2.4 MP
- HD: Yes
- Dome Type: Static
Dahua Technology DH-HAC-HDBW2220RP-Z is a 1/3-inch IR HDCVI dome camera with 2.4Megapixel CMOS, high speed, long distance real-time transmission, HD and standard definition switchable, OSD Menu, control over coaxial cable, 2.7~12mm motorised lens and max. IR LEDs length 30m, Smart IR.
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>Dome cameras |
| Model code | DH-HAC-HDBW2220RP-Z |
| Resolution TVL | 2.4 MP |
| HD | Yes |
| Dome Type | Static |
| Digital (DSP) | Yes |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 9.6 W |
| Focal length | 2.7 ~ 12 |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/3 ~ 1/100,000 sec |
| Synchronisation | Internal |
| Built-in IR LED | Yes |
| Video Output | BNC |
| Network Properties | Image Frame Rate: 30 fps |
| Physical Specifications |
Dimensions mm: 122 x 89 Weight g: 450 |
| Environmental Specifications |
Operating Temp oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: <95 Protection: IP66, IK10 |
| Additional info |
Dahua Technology DH-HAC-HDBW2220RP-Z is a 1/3-inch IR HDCVI dome camera with 2.4Megapixel CMOS, high speed, long distance real-time transmission, HD and standard definition switchable, OSD Menu, control over coaxial cable, 2.7~12mm motorised lens and max. IR LEDs length 30m, Smart IR. |
