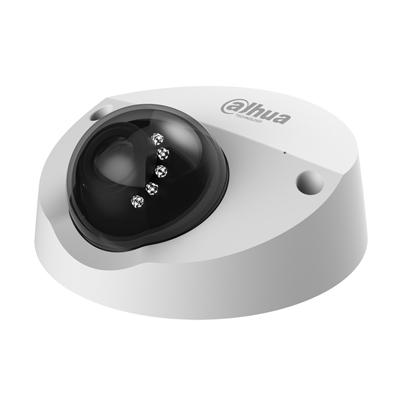

Dahua Technology DH-HAC-HDBW2220F 2.4MP IR Mini Dome Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: DH-HAC-HDBW2220F
- Resolution TVL: 2.4 MP
- HD: Yes
- Dome Type: Static
Additional info:
Dahua Technology DH-HAC-HDBW2220F is a 2.4MP IR HDCVI mini dome camera. It features high speed, long distance real-time transmission, OSD Menu, control over coaxial cable as well as a built-in MIC. It is HD and standard definition switchable. It also features max. IR LEDs length 20m and Smart IR.
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>Dome cameras |
| Model code | DH-HAC-HDBW2220F |
| Resolution TVL | 2.4 MP |
| HD | Yes |
| Dome Type | Static |
| Digital (DSP) | Yes |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 3.3 W |
| Focal length | 3.6 mm |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/3s ~ 1/100,000s |
| Synchronisation | Internal |
| Signal Mode | NTSC, PAL |
| Built-in IR LED | Yes |
| Video Output | 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch) |
| Network Properties | Image Frame Rate: 60 fps |
| Physical Specifications |
Dimensions mm: 106 x 50 Weight g: 300 |
| Environmental Specifications |
Operating Temp oC: -30 ~ +60 C (-22 ~ 140 F) Operating Humidity %: 0 ~ 95 Protection: IP67, IK10 |
| Additional info |
Dahua Technology DH-HAC-HDBW2220F is a 2.4MP IR HDCVI mini dome camera. It features high speed, long distance real-time transmission, OSD Menu, control over coaxial cable as well as a built-in MIC. It is HD and standard definition switchable. It also features max. IR LEDs length 20m and Smart IR. |
