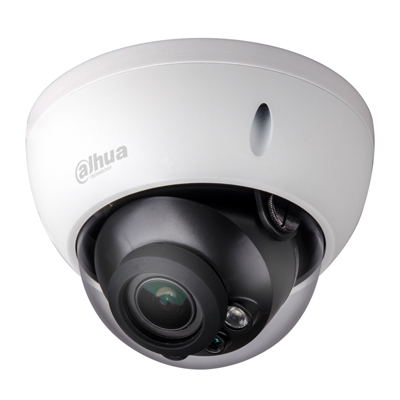

Dahua Technology DH-HAC-HDBW2120RP-Z 1.4MP IR HDCVI Dome Camera

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: DH-HAC-HDBW2120RP-Z
  • Chip Inch Size: 1/3
  • Color Type: Color / Monochrome
  • Resolution TVL: 1.4 MP
Read more
Additional info:

Dahua Technology DH-HAC-HDBW2120RP-Z is a 1.4MP IR HDCVI vandal-proof dome camera. It features high speed, long distance real-time transmission as well as Smart IR, 3D-DNR, and OSD Menu. The DH-HAC-HDBW2120RP-Z is HD and standard definition switchable.

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code DH-HAC-HDBW2120RP-Z
Chip Inch Size 1/3
Color Type Color / Monochrome
Resolution TVL 1.4 MP
HD Yes
Dome Type Static
Digital (DSP) Yes
Electrical Specifications Voltage: 12 V DC
Power Consumption: 9.6 W
Focal length 2.7 ~ 12 mm
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/3s ~ 1/100,000s
Synchronisation Internal
Signal Mode PAL
Built-in IR LED Yes
Video Output 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output
Network Properties Image Frame Rate: 50 fps
Physical Specifications Dimensions mm: 122 x 89
Weight g: 450
Environmental Specifications Operating Temp oC: -30 ~ +60 C (-22 ~ +140 F)
Operating Humidity %: 0 ~ 95
Protection: IP66, IK10
Additional info Dahua Technology DH-HAC-HDBW2120RP-Z is a 1.4MP IR HDCVI vandal-proof dome camera. It features high speed, long distance real-time transmission as well as Smart IR, 3D-DNR, and OSD Menu. The DH-HAC-HDBW2120RP-Z is HD and standard definition switchable.
