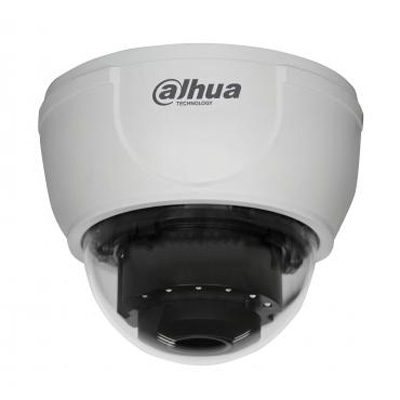

Dahua Technology DH-CA-DW481BP(-A) IR Zoom Dome Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: DH-CA-DW481BP(-A)
- Resolution TVL: 700
- Sensitivity lux: 0.05
- Voltage: 12 VDC
Additional info:
DH-CA-DW481BP(-A) is a 700TVL IR zoom dome camera with various features, such as: WDR, D&N(ICR), 2DNR, auto iris, AWB, AGC,BLC, MD, DZOOM, privacy masking, picture adjustment; Max. IR LEDs length 20m, Smart IR.
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>Dome cameras |
| Model code | DH-CA-DW481BP(-A) |
| Resolution TVL | 700 |
| Sensitivity lux | 0.05 |
| Electrical Specifications |
Voltage: 12 VDC Power Consumption: 4W |
| Focal length | 2.8 ~ 12 |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/50 ~ 1/100,000s |
| S/ N (Signal/ Noise) Ratio dB | >60 |
| Synchronisation | Internal |
| Built-in IR LED | Yes |
| Video Output | 1Vp-p Composite Output (75?/BNC) |
| Physical Specifications |
Dimensions mm: 141 x 120 Weight g: 400 |
| Environmental Specifications |
Operating Temp oC: -30 ~ +60 Operating Humidity %: 20 ~ 80 |
| Additional info |
DH-CA-DW481BP(-A) is a 700TVL IR zoom dome camera with various features, such as: WDR, D&N(ICR), 2DNR, auto iris, AWB, AGC,BLC, MD, DZOOM, privacy masking, picture adjustment; Max. IR LEDs length 20m, Smart IR. |
