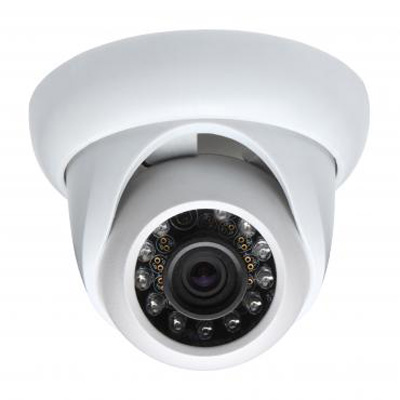

Dahua Technology DH-CA-DW470EP Water-proof IR Mini Dome Camera

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: DH-CA-DW470EP
  • Chip Inch Size: 1/3
  • Color Type: True Day / Night
  • Resolution TVL: 600
Read more
Additional info:

DH-CA-DW470EP is a 600TVL water-proof IR mini dome camera with various features, such as: Max. IR LEDs length 20m;OSD, IP66, DC12V;DWDR, day/night, AWB, AGC, BLC,MD, privacy masking, picture adjustment.

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code DH-CA-DW470EP
Chip Inch Size 1/3
Color Type True Day / Night
Resolution TVL 600
Sensitivity lux 0.1
Electrical Specifications Voltage: 12 VDC
Power Consumption: 2.5W
Focal length 3.6
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/50 ~ 1/100,000
S/ N (Signal/ Noise) Ratio dB >60
Synchronisation Internal
Built-in IR LED Yes
Video Output 1Vp-p Composite Output (75?/BNC)
Physical Specifications Dimensions mm: 114 x 85
Weight g: 300
Environmental Specifications Operating Temp oC: -30 ~ +60 C
Operating Humidity %: 20 ~ 80
Protection: IP66
Additional info DH-CA-DW470EP is a 600TVL water-proof IR mini dome camera with various features, such as: Max. IR LEDs length 20m;OSD, IP66, DC12V;DWDR, day/night, AWB, AGC, BLC,MD, privacy masking, picture adjustment.
