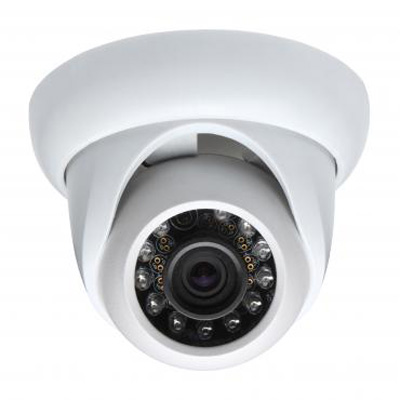

Dahua Technology DH-CA-DW470EN 600TVL Water-proof IR Mini Dome Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: DH-CA-DW470EN
- Resolution TVL: 600
- Sensitivity lux: 0.1
- Voltage: 12 VDC
Additional info:
DH-CA-DW470EN is a 600TVL water-proof IR mini dome camera with the following features: DWDR, Day/Night, AWB, AGC, BLC,MD, privacy masking, picture adjustment; Max. IR LEDs length 20m.
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>Dome cameras |
| Model code | DH-CA-DW470EN |
| Resolution TVL | 600 |
| Sensitivity lux | 0.1 |
| Electrical Specifications |
Voltage: 12 VDC Power Consumption: 2.5W |
| Focal length | 3.6 |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/50 ~ 1/100,000 |
| S/ N (Signal/ Noise) Ratio dB | >60 |
| Synchronisation | Internal |
| Built-in IR LED | Yes |
| Video Output | 1Vp-p Composite Output (75?/BNC) |
| Physical Specifications |
Dimensions mm: 114 x 85 Weight g: 300 |
| Environmental Specifications |
Operating Temp oC: -30 ~ +60 C Operating Humidity %: 20 ~ 80 Protection: IP66 |
| Additional info |
DH-CA-DW470EN is a 600TVL water-proof IR mini dome camera with the following features: DWDR, Day/Night, AWB, AGC, BLC,MD, privacy masking, picture adjustment; Max. IR LEDs length 20m. |
