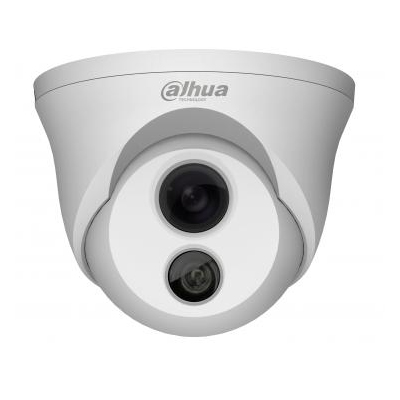

Dahua Technology DH-CA-DW181M 1/3-inch Color / Monochrome IR Dome Camera

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: DH-CA-DW181M
  • Chip Inch Size: 1/3
  • Color Type: Color / Monochrome
  • Resolution TVL: 720
Read more
Additional info:

Dahua Technology DH-CA-DW181M is a 1/3-inch color / monochrome IR dome camera with high resolution of 720TVL, 3.6mm fixed lens and max. IR LEDs length 30m, Smart IR.

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code DH-CA-DW181M
Chip Inch Size 1/3
Color Type Color / Monochrome
Resolution TVL 720
Dome Type Static
Digital (DSP) Yes
Electrical Specifications Voltage: 12 V DC
Power Consumption: 4.5 W
Focal length 3.6 mm
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/50 ~ 1/100,000 sec
S/ N (Signal/ Noise) Ratio dB >65
Synchronisation Internal
Built-in IR LED Yes
Video Output 1Vp-p Composite Output (75 ohms/BNC)
Physical Specifications Dimensions mm: 117 x 90
Weight g: 600
Environmental Specifications Operating Temp oC: -40 ~ +60 C (-40 ~ +140 F)
Operating Humidity %: <95
Protection: IP66
Additional info Dahua Technology DH-CA-DW181M is a 1/3-inch color / monochrome IR dome camera with high resolution of 720TVL, 3.6mm fixed lens and max. IR LEDs length 30m, Smart IR.
