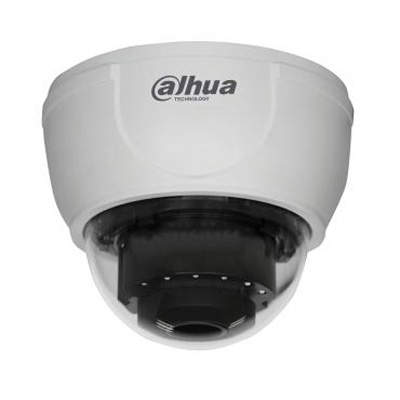

Dahua Technology DH-CA- DW171BN Day/night IR Dome Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: DH-CA- DW171BN
- Resolution TVL: 600
- Sensitivity lux: 0.1
- Voltage: 12 VDC
Additional info:
DH-CA-DW171BN is a 600TVL day/night IR dome camera with the following features: Max. IR LED length 20m, Smart IR; 2.8 ~ 12mm varifocal lens; High resolution of 600TVL(Color).
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>Dome cameras |
| Model code | DH-CA- DW171BN |
| Resolution TVL | 600 |
| Sensitivity lux | 0.1 |
| Electrical Specifications |
Voltage: 12 VDC Power Consumption: 2W |
| Focal length | 2.8 ~ 12 |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/50 ~ 1/100,000s |
| S/ N (Signal/ Noise) Ratio dB | >60 |
| Synchronisation | Internal |
| Video Output | 1Vp-p Composite Output (75?/BNC) |
| Physical Specifications |
Dimensions mm: 141 x 120 Weight g: 400 |
| Environmental Specifications |
Operating Temp oC: -40 ~ +60 C Operating Humidity %: 20 ~ 80 |
| Additional info |
DH-CA-DW171BN is a 600TVL day/night IR dome camera with the following features: Max. IR LED length 20m, Smart IR; 2.8 ~ 12mm varifocal lens; High resolution of 600TVL(Color). |
| Download PDF version Download PDF version | |
