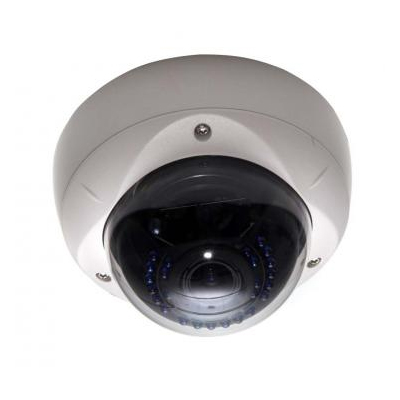

Dahua Technology DH-CA-DBW581-CP 1/3-inch Color / Monochrome Dome Camera

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: DH-CA-DBW581-CP
  • Chip Inch Size: 1/3
  • Color Type: Color / Monochrome
  • Resolution TVL: 700
Read more
Additional info:

Dahua Technology DH-CA-DBW581-CP is a 1/3-inch color / monochrome dome camera with high resolution of 700TVL, 3.5~8mm varifocal lens, IR LEDs length 30m, Smart IR.

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code DH-CA-DBW581-CP
Chip Inch Size 1/3
Color Type Color / Monochrome
Resolution TVL 700
Dome Type Static
Sensitivity lux 0.01
Digital (DSP) Yes
Electrical Specifications Voltage: 12 V DC
Power Consumption: 4 W
Focal length 3.5 ~ 8 mm
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/50 ~ 1/100,000 sec
S/ N (Signal/ Noise) Ratio dB >48
Synchronisation Internal / External
Signal Mode PAL
Built-in IR LED Yes
Video Output 1Vp-p Composite Output (75 ohms/BNC)
Physical Specifications Dimensions mm: 100 x 150
Weight g: 980
Environmental Specifications Operating Temp oC: -10 ~ +50 C (14 ~ 122 F)
Operating Humidity %: 20 ~ 90
Protection: IP66
Additional info Dahua Technology DH-CA-DBW581-CP is a 1/3-inch color / monochrome dome camera with high resolution of 700TVL, 3.5~8mm varifocal lens, IR LEDs length 30m, Smart IR.
Download PDF version
