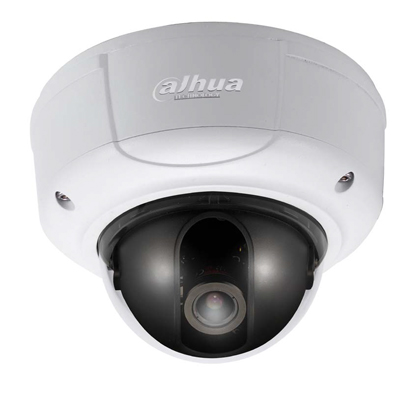

Dahua Technology DH-CA-DB480BP(-A) 700TVL Vandal-resistant Dome Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: DH-CA-DB480BP(-A)
- Chip Inch Size: 1/3
- Color Type: Color / Monochrome
- Resolution TVL: 700 TVL
| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>Dome cameras |
| Model code | DH-CA-DB480BP(-A) |
| Chip Inch Size | 1/3 |
| Color Type | Color / Monochrome |
| Resolution TVL | 700 TVL |
| Sensitivity lux | 0.05 |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 3 W |
| Focal length | 4 ~ 9 mm |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/50 ~ 1/100,000 s |
| S/ N (Signal/ Noise) Ratio dB | >60 |
| Synchronisation | Internal |
| Video Output | 1Vp-p Composite Output, 75 Ohms/BNC |
| Physical Specifications |
Dimensions mm: 160 x 119 Weight g: 1,000 |
| Environmental Specifications |
Operating Temp oC: -30 ~ +60 Operating Humidity %: 20 ~ 80 Protection: IP66 |
