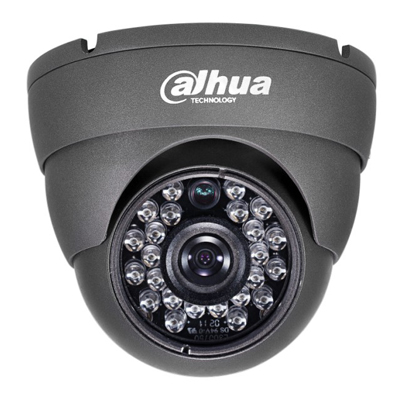

Dahua Technology DH-CA-D480DN Mobile IR Dome Camera

Please note: this is a discontinued product.

See relevant products

Features:

Additional info:

Dahua Technology DH-CA-D480DN is a mobile IR dome camera featuring high resolution of 700TVL, DWDR, and 3.6mm fixed lens.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>Dome cameras
Model code	DH-CA-D480DN
Resolution TVL	700
Dome Type	Static
Digital (DSP)	Yes
Electrical Specifications	Voltage: 12 V DC Power Consumption: 5 W
Focal length	3.6 mm
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/60s ~ 1/100,000s
S/ N (Signal/ Noise) Ratio dB	> 60
Synchronisation	Internal
Signal Mode	NTSC
Built-in IR LED	Yes
Video Output	1Vp-p Composite Output (75ohms/Aviation connector)
Physical Specifications	Dimensions mm: 93 x 78 Weight g: 500
Environmental Specifications	Operating Temp ^oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: 20 ~ 80
Additional info	Dahua Technology DH-CA-D480DN is a mobile IR dome camera featuring high resolution of 700TVL, DWDR, and 3.6mm fixed lens.
