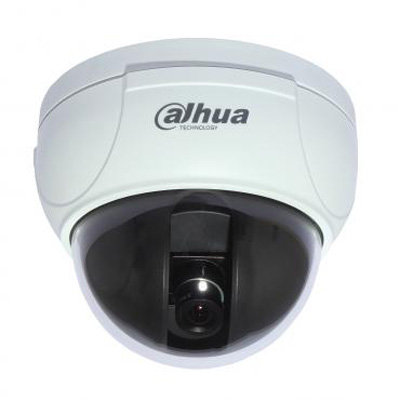

Dahua Technology DH-CA- D450CN 520 TVL Mini Dome Camera

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: DH-CA- D450CN
  • Chip Inch Size: 1/3
  • Color Type: True Day / Night
  • Resolution TVL: 520
Read more
Additional info:

DH-CA-D450CN is a 520TVL mini dome camera with various features, such as: Day/Night, 2DNR, AWB, AGC,BLC, MD, privacy masking, picture adjustment; 3.6mm fixed lens (2.8mm, 6mm, 8mm optional).

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code DH-CA- D450CN
Chip Inch Size 1/3
Color Type True Day / Night
Resolution TVL 520
Sensitivity lux 0.1
Electrical Specifications Voltage: 12 VDC
Power Consumption: 1W
Focal length 6
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/50 ~ 1/100,000
S/ N (Signal/ Noise) Ratio dB >50
Synchronisation Internal
Built-in IR LED Yes
Video Output 1Vp-p Composite Output (75?/BNC)
Physical Specifications Dimensions mm: 108 x 86
Weight g: 300
Environmental Specifications Operating Temp oC: -10 ~ +60 C
Operating Humidity %: 20 ~ 80
Additional info DH-CA-D450CN is a 520TVL mini dome camera with various features, such as: Day/Night, 2DNR, AWB, AGC,BLC, MD, privacy masking, picture adjustment; 3.6mm fixed lens (2.8mm, 6mm, 8mm optional).
