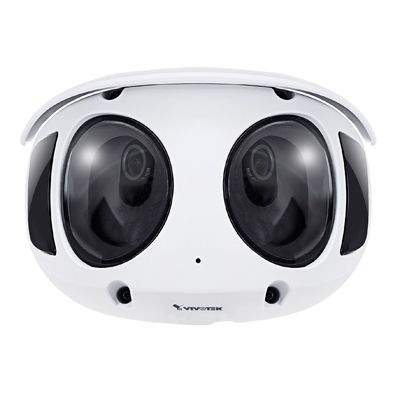

Smarter Ways With VIVOTEK 8MP 180° Panoramic Camera, MS9390-HV
Technical Specification
Features:
- Make: VIVOTEK
- Model code: MS9390-HV
- Chip Inch Size: 1/3
- Color Type: Color / Monochrome
- Resolution TVL: 8MP
Additional info:
8-Megapixel Resolution H.265 Compression Technology 180° Panoramic View 30 fps @ 4512x1728 Video Alignment For a Seamless Image Smart Stream III to Optimize Bandwidth Efficiency Built-in IR Illuminators, Effective up to 20 Meters SNV (Supreme Night Visibility) 3D Noise Reduction for Low-light Conditions Built-in Microphone Built-in MicroSD/SDHC/SDXC Card Slot Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
Read more| Make | VIVOTEK |
|---|---|
| Manufacturer | VIVOTEK |
| Category | Video Surveillance>IP Dome cameras |
| Model code | MS9390-HV |
| Chip Inch Size | 1/3 |
| Color Type | Color / Monochrome |
| Resolution TVL | 8MP |
| Megapixel | Yes |
| Sensitivity lux | 0 ~ 0.05 |
| Indoor/Outdoor | Indoor/Outdoor |
| Digital (DSP) | Yes |
| Mount Type | Wall |
| Electrical Specifications |
Voltage: PoE Power Consumption: 15.2 W |
| Focal length | 2.8mm |
| Compression | H.265, H.264, MJPEG |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/5 sec. ~ 1/32,000 sec. |
| S/ N (Signal/ Noise) Ratio dB | 46 |
| Network Properties |
Interface: 10 Base-T/100 BaseTX Ethernet (RJ-45) Network Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/ RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, NTCIP, ARP, SSL, TLS, CIFS/SMB Image Frame Rate: 30 fps |
| Physical Specifications |
Dimensions mm: 165 x 112 x 97 Weight g: 1,207 |
| Environmental Specifications |
Operating Temp oC: -20 ~ +50 C (-4 ~ +122 F) Operating Humidity %: 90 Protection: IP66, IK10 |
| System Requirements |
Operating System: Microsoft Windows 8/7 Web Browser: Internet Explorer 10/11 |
| Additional info |
|
| Download PDF version Download PDF version | |
