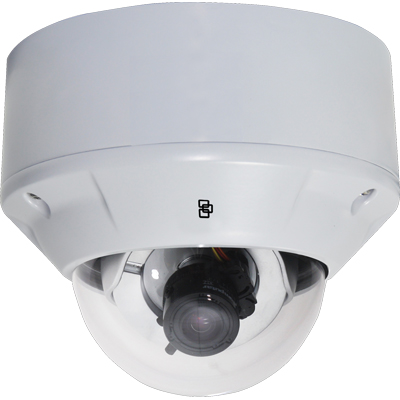

TruVision TVD-M1120V-3-N 1.3 MP True Day/Night IP Dome Camera
Technical Specification
Features:
- Make: TruVision
- Model code: TVD-M1120V-3-N
- Color Type: True Day / Night
- Resolution TVL: 1280 × 960
- HD: Yes
| Make | TruVision |
|---|---|
| Manufacturer | Interlogix |
| Category | Video Surveillance>IP Dome cameras |
| Model code | TVD-M1120V-3-N |
| Color Type | True Day / Night |
| Resolution TVL | 1280 × 960 |
| HD | Yes |
| Megapixel | Yes |
| Sensitivity lux | 0.1 |
| Electrical Specifications |
Voltage: 24 V AC Power Consumption: 4 W |
| Focal length | 3.3 ~ 12 mm |
| Compression | H 2.64 |
| Electronic Shutter range | 1/4 ~ 1/100,000 s |
| S/ N (Signal/ Noise) Ratio dB | > 50 |
| Signal Mode | NTSC |
| Video Output | 1.0 Vp-p @ 75 ohm |
| Network Properties |
Network Protocols: TCP/IP, HTTP, DHCP, RTP/RTCP, PPPoE Image Frame Rate: 30 fps |
| Physical Specifications |
Dimensions mm: 156 × 134 Weight g: 1,400 |
| Environmental Specifications |
Operating Temp oC: -10 ~ +60 Protection: IP66 |
| System Requirements |
Operating System: Windows ® XP, Vista or 7 Web Browser: Microsoft Internet Explorer 6.0 or later |
